expandablelistview简单例子

Home / Android MrLee 2016-10-26 4260

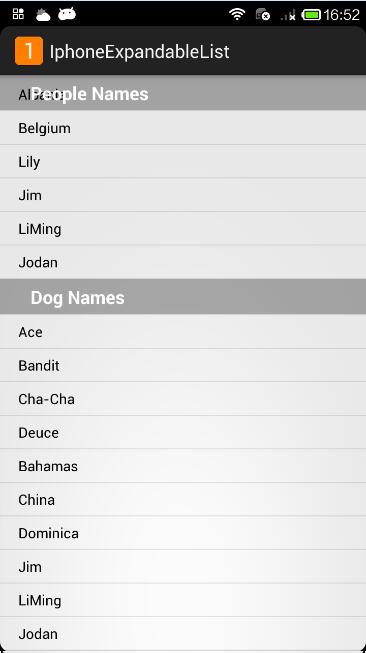

效果还不错，还有浮动条。

20161026165320


源码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
package com.way.demo;
import android.app.Activity;
import android.content.Context;
import android.graphics.Color;
import android.os.Bundle;
import android.util.Log;
import android.view.Gravity;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.view.ViewGroup.MarginLayoutParams;
import android.widget.AbsListView;
import android.widget.AbsListView.OnScrollListener;
import android.widget.AdapterView;
import android.widget.BaseExpandableListAdapter;
import android.widget.ExpandableListView;
import android.widget.FrameLayout;
import android.widget.TextView;
public class IphoneExpandableListActivity extends Activity implements
        OnScrollListener {
    private static final String TAG = "iphone";
    private static final String PRE = "IphoneExpandableListActivity--";
    private ExpandableListView listView;
    private MyExpandableListAdapter mAdapter;
    private FrameLayout indicatorGroup;
    private int indicatorGroupId = -1;
    private int indicatorGroupHeight;
    private LayoutInflater mInflater;
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        mInflater = (LayoutInflater) getSystemService(Context.LAYOUT_INFLATER_SERVICE);
        listView = (ExpandableListView) findViewById(R.id.expandableListView);
        indicatorGroup = (FrameLayout) findViewById(R.id.topGroup);
        // indicatorGroup.setVisibility(View.INVISIBLE);
        mAdapter = new MyExpandableListAdapter();
        listView.setAdapter(mAdapter);
        listView.setOnScrollListener(this);
        listView.setGroupIndicator(null);
        // copy group view to indicator Group
        mInflater.inflate(R.layout.list_item, indicatorGroup, true);
        for (int i = 0; i < mAdapter.getGroupCount(); i++) {
            listView.expandGroup(i);
        }
    }
    /**
     * A simple adapter which maintains an ArrayList of photo resource Ids. Each
     * photo is displayed as an image. This adapter supports clearing the list
     * of photos and adding a new photo.
     *
     */
    public class MyExpandableListAdapter extends BaseExpandableListAdapter {
        // Sample data set. children[i] contains the children (String[]) for
        // groups[i].
        private String[] groups = { "People Names", "Dog Names", "Cat Names",
                "Fish Names" };
        private String[][] children = {
                { "Way", "Arnold", "Barry", "Chuck", "David", "Afghanistan",
                        "Albania", "Belgium", "Lily", "Jim", "LiMing", "Jodan" },
                { "Ace", "Bandit", "Cha-Cha", "Deuce", "Bahamas", "China",
                        "Dominica", "Jim", "LiMing", "Jodan" },
                { "Fluffy", "Snuggles", "Ecuador", "Ecuador", "Jim", "LiMing",
                        "Jodan" },
                { "Goldy", "Bubbles", "Iceland", "Iran", "Italy", "Jim",
                        "LiMing", "Jodan" } };
        public Object getChild(int groupPosition, int childPosition) {
            return children[groupPosition][childPosition];
        }
        public long getChildId(int groupPosition, int childPosition) {
            return childPosition;
        }
        public int getChildrenCount(int groupPosition) {
            return children[groupPosition].length;
        }
        public TextView getGenericView() {
            // Layout parameters for the ExpandableListView
            AbsListView.LayoutParams lp = new AbsListView.LayoutParams(
                    ViewGroup.LayoutParams.MATCH_PARENT, 64);
            TextView textView = new TextView(IphoneExpandableListActivity.this);
            textView.setLayoutParams(lp);
            // Center the text vertically
            textView.setGravity(Gravity.CENTER_VERTICAL | Gravity.LEFT);
            // Set the text starting position
            textView.setPadding(36, 0, 0, 0);
            textView.setTextColor(Color.BLACK);
            return textView;
        }
        public View getChildView(int groupPosition, int childPosition,
                boolean isLastChild, View convertView, ViewGroup parent) {
            TextView textView = getGenericView();
            textView.setText(getChild(groupPosition, childPosition).toString());
            return textView;
        }
        public Object getGroup(int groupPosition) {
            return groups[groupPosition];
        }
        public int getGroupCount() {
            return groups.length;
        }
        public long getGroupId(int groupPosition) {
            return groupPosition;
        }
        /**
         * create group view and bind data to view
         */
        public View getGroupView(int groupPosition, boolean isExpanded,
                View convertView, ViewGroup parent) {
            View v;
            if (convertView == null) {
                v = mInflater.inflate(R.layout.list_item, null);
            } else {
                v = convertView;
            }
            TextView textView = (TextView) v.findViewById(R.id.textView);
            textView.setText(getGroup(groupPosition).toString());
            return v;
        }
        public boolean isChildSelectable(int groupPosition, int childPosition) {
            return true;
        }
        public boolean hasStableIds() {
            return true;
        }
    }
    /**
     * here is very importance for indicator group
     */
    public void onScroll(AbsListView view, int firstVisibleItem,
            int visibleItemCount, int totalItemCount) {
        final ExpandableListView listView = (ExpandableListView) view;
        /**
         * calculate point (0,0)
         */
        int npos = view.pointToPosition(0, 0);// 其实就是firstVisibleItem
        if (npos == AdapterView.INVALID_POSITION)// 如果第一个位置值无效
            return;
        long pos = listView.getExpandableListPosition(npos);
        int childPos = ExpandableListView.getPackedPositionChild(pos);// 获取第一行child的id
        int groupPos = ExpandableListView.getPackedPositionGroup(pos);// 获取第一行group的id
        if (childPos == AdapterView.INVALID_POSITION) {// 第一行不是显示child,就是group,此时没必要显示指示器
            View groupView = listView.getChildAt(npos
                    - listView.getFirstVisiblePosition());// 第一行的view
            indicatorGroupHeight = groupView.getHeight();// 获取group的高度
            indicatorGroup.setVisibility(View.GONE);// 隐藏指示器
        } else{
            indicatorGroup.setVisibility(View.VISIBLE);// 滚动到第一行是child，就显示指示器
        }
        // get an error data, so return now
        if (indicatorGroupHeight == 0) {
            return;
        }
        // update the data of indicator group view
        if (groupPos != indicatorGroupId) {// 如果指示器显示的不是当前group
            mAdapter.getGroupView(groupPos, listView.isGroupExpanded(groupPos),
                    indicatorGroup.getChildAt(0), null);// 将指示器更新为当前group
            indicatorGroupId = groupPos;
            Log.e(TAG, PRE + "bind to new group,group position = " + groupPos);
            // mAdapter.hideGroup(indicatorGroupId); // we set this group view
            // to be hided
            // 为此指示器增加点击事件
            indicatorGroup.setOnClickListener(new OnClickListener() {
                public void onClick(View v) {
                    // TODO Auto-generated method stub
                    listView.collapseGroup(indicatorGroupId);
                }
            });
        }
        if (indicatorGroupId == -1) // 如果此时grop的id无效，则返回
            return;
        /**
         * calculate point (0,indicatorGroupHeight) 下面是形成往上推出的效果
         */
        int showHeight = indicatorGroupHeight;
        int nEndPos = listView.pointToPosition(0, indicatorGroupHeight);// 第二个item的位置
        if (nEndPos == AdapterView.INVALID_POSITION)//如果无效直接返回
            return;
        long pos2 = listView.getExpandableListPosition(nEndPos);
        int groupPos2 = ExpandableListView.getPackedPositionGroup(pos2);//获取第二个group的id
        if (groupPos2 != indicatorGroupId) {//如果不等于指示器当前的group
            View viewNext = listView.getChildAt(nEndPos
                    - listView.getFirstVisiblePosition());
            showHeight = viewNext.getTop();
            Log.e(TAG, PRE + "update the show part height of indicator group:"
                    + showHeight);
        }
        // update group position
        MarginLayoutParams layoutParams = (MarginLayoutParams) indicatorGroup
                .getLayoutParams();
        layoutParams.topMargin = -(indicatorGroupHeight - showHeight);
        indicatorGroup.setLayoutParams(layoutParams);
    }
    public void onScrollStateChanged(AbsListView view, int scrollState) {
    }
}

xml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >
    <ExpandableListView
        android:id="@+id/expandableListView"
        android:layout_width="match_parent"
        android:layout_height="match_parent" >
    </ExpandableListView>
    <FrameLayout
        android:id="@+id/topGroup"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical" >
    </FrameLayout>
</FrameLayout>


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@color/item_bg_color"
    android:paddingLeft="15dp" >
    android:background="@android:color/background_dark"
    <TextView
        android:id="@+id/textView"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_gravity="center_vertical"
        android:paddingBottom="5dip"
        android:paddingLeft="15dp"
        android:paddingTop="5dip"
        android:textColor="@android:color/white"
        android:textSize="18sp"
        android:textStyle="bold" >
    </TextView>
</LinearLayout>
