本文记录FFmpeg的Configure脚本的源代码。Configure一方面用于检测FFmpeg的编译环境，另一方面根据用户配置的选项生成config.mak，config.h文件（可能还有config.asm），提供给Makefile使用。由于FFmpeg的configure脚本很复杂（一个4000-5000行的Shell脚本），难以逐行细致的分析，因此本文简单梳理一下它的结构。 Configure的整体流程可以分成以下几步：
需要注意的是，“enable avcodec”，“enable avformat”，“enable avutil”等中的enable()本身是一个函数。enable()的定义如下。
在这里需要注意，取出opt的值一般都是“--extra-ldflags=XXX”的形式，通过“${opt#*=}”截取获得“=”号后面的内容作为optval，对于“--extra-ldflags=XXX”来说，optval取值为“XXX”。 然后根据opt种类的不同，以及optval取值的不同，分别作不同的处理。
其中涉及到一个函数die_license_disabled()，它的定义如下所示。
从定义可以看出，die_license_disabled()首先会看第1个参数（对应“gpl”，“nonfree”）对应的组件是否enable，如果已经enable，则正常运行完函数；如果没有enable，则会检查第2个参数（对应“libx264”，“libfaac”）是否enable，如果第2个参数enable了，就会报错退出。 下面简单举例下面几个函数：
check_func()的定义如下所示。
PS1：Configure的日志位于config.log文件中。查看该文件有助于分析Configure的过程。
PS2：使用“sh -x script_name.sh”可以调试Shell脚本。
Configure文件的整体流程

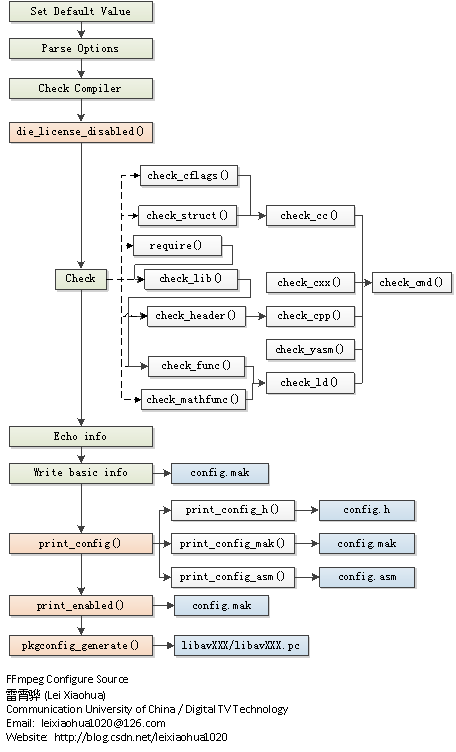

Configure文件的整体流程如下所示。
Set Default Value：设置各个变量默认值；下文简单梳理一下这些步骤。
Parse Options：解析输入的选项；
Check Compiler：检查编译器；
die_license_disabled()：检查GPL等协议的设置情况；
Check：检查编译环境（数学函数，第三方类库等）；
Echo info：控制台上打印配置信息；
Write basic info：向config.mak中写入一些基本信息；
print_config()：向config.h、config.mak、config.asm中写入所有配置信息；
print_enabled()：向config.mak写入所有enabled的组件信息；
pkgconfig_generate()：向libavXXX/libavXXX.pc中写入pkgconfig信息（XXX代表avcodec，avformat等）；
Set Default Value
Set Default Value部分设置一些Configure的默认值。例如下面的代码。# 默认参数 default parameters
# 日志
logfile="config.log"
# 安装路径 installation paths
prefix_default="/usr/local"
bindir_default='${prefix}/bin'
datadir_default='${prefix}/share/ffmpeg'
incdir_default='${prefix}/include'
libdir_default='${prefix}/lib'
mandir_default='${prefix}/share/man'
shlibdir_default="$libdir_default"
postproc_version_default="current"
# 工具链 toolchain
ar_default="ar"
cc_default="gcc"
cxx_default="g++"
cc_version="unknown"
host_cc_default="gcc"
install="install"
ln_s="ln -sf"
nm_default="nm"
objformat="elf"
pkg_config_default=pkg-config
ranlib="ranlib"
strip_default="strip"
yasmexe_default="yasm"
nm_opts='-g'
nogas=":"
# 机器 machine
arch_default=$(uname -m)
cpu="generic"
# 操作系统 OS
target_os_default=$(tolower $(uname -s))
host_os=$target_os_default
# alternative libpostproc version
ALT_PP_VER_MAJOR=51
ALT_PP_VER_MINOR=2
ALT_PP_VER_MICRO=101
ALT_PP_VER=$ALT_PP_VER_MAJOR.$ALT_PP_VER_MINOR.$ALT_PP_VER_MICRO
# 选项 configurable options
# PROGRAM_LIST内容是 ffplay ffprobe ffserver ffmpeg
enable $PROGRAM_LIST
enable avcodec
enable avdevice
enable avfilter
enable avformat
enable avutil
enable postproc
enable stripping
enable swresample
enable swscale
enable asm
enable debug
enable doc
enable fastdiv
enable network
enable optimizations
enable safe_bitstream_reader
enable static
enable swscale_alpha
# 编译选项 build settings
SHFLAGS='-shared -Wl,-soname,$$(@F)'
FFSERVERLDFLAGS=-Wl,-E
# 前缀后缀
LIBPREF="lib"
LIBSUF=".a"
FULLNAME='$(NAME)$(BUILDSUF)'
# 名称
LIBNAME='$(LIBPREF)$(FULLNAME)$(LIBSUF)'
# 动态库前缀后缀
SLIBPREF="lib"
SLIBSUF=".so"
# 名称
SLIBNAME='$(SLIBPREF)$(FULLNAME)$(SLIBSUF)'
SLIBNAME_WITH_VERSION='$(SLIBNAME).$(LIBVERSION)'
SLIBNAME_WITH_MAJOR='$(SLIBNAME).$(LIBMAJOR)'
LIB_INSTALL_EXTRA_CMD='$$(RANLIB) "$(LIBDIR)/$(LIBNAME)"'
SLIB_INSTALL_NAME='$(SLIBNAME_WITH_VERSION)'
SLIB_INSTALL_LINKS='$(SLIBNAME_WITH_MAJOR) $(SLIBNAME)'
AS_O='-o $@'
CC_O='-o $@'
CXX_O='-o $@'
host_cflags='-D_ISOC99_SOURCE -O3 -g'
host_libs='-lm'
target_path='$(CURDIR)'
需要注意的是，“enable avcodec”，“enable avformat”，“enable avutil”等中的enable()本身是一个函数。enable()的定义如下。
#把所有输入参数的值设置为"yes" enable(){ set_all yes $* } 可以看出enable()调用了set_all()函数。并且将第1个参数设置为“yes”，并且将调用enable()时候的参数传递给set_all()。set_all()函数的定义如下所示。 #第一个参数为值，后面的参数为变量 set_all(){ value=$1 shift for var in $*; do eval $var=$value done } 可以看出set_all()将传入的参数全部进行赋值。特定于enable()函数来说，就是将所有的输入变量赋值为“yes”。由此可见，“enable avcodec”实际上相当于执行了： avcodec=”yes”
Parse Options
Parse Options部分用于解析Configure的附加参数。该部分的代码如下所示。#注意：opt不是参数列表（实际上也没有看见opt变量的定义）
#原因是处在for循环中，当你没有为in指定列表时，for会默认取命令行参数列表。
#因此“opt”这个名字实际上是可以随便取的
for opt do
# "#"用于去除特定字符前面的字符串
# optval内容为opt去掉"="以及其前面字符串之后的内容
optval="${opt#*=}"
case "$opt" in
# 不同的选项
--extra-ldflags=*) add_ldflags $optval
;;
--extra-libs=*) add_extralibs $optval
;;
--disable-devices) disable $INDEV_LIST $OUTDEV_LIST
;;
--enable-debug=*) debuglevel="$optval"
;;
--disable-everything)
map 'eval unset ${$(toupper ${v%s})_LIST}' $COMPONENT_LIST
;;
--enable-*=*|--disable-*=*)
eval $(echo "${opt%%=*}" | sed 's/--/action=/;s/-/ thing=/')
is_in "${thing}s" $COMPONENT_LIST || die_unknown "$opt"
eval list=$$(toupper $thing)_LIST
name=$(echo "${optval}" | sed "s/,/_${thing}|/g")_${thing}
$action $(filter "$name" $list)
;;
--enable-?*|--disable-?*)
eval $(echo "$opt" | sed 's/--/action=/;s/-/ option=/;s/-/_/g')
if is_in $option $COMPONENT_LIST; then
test $action = disable && action=unset
eval $action $$(toupper ${option%s})_LIST
elif is_in $option $CMDLINE_SELECT; then
$action $option
else
die_unknown $opt
fi
;;
--list-*)
NAME="${opt#--list-}"
is_in $NAME $COMPONENT_LIST || die_unknown $opt
NAME=${NAME%s}
eval show_list $NAME $$(toupper $NAME)_LIST
;;
--help|-h) show_help
;;
*)
#% 就是从右边开始删除符合条件的字符串（符合条件的最短字符串）
#%%是删除符合条件的最长的字符串
#删除“=”右边的内容
optname="${opt%%=*}"
#删除左边的“--”
optname="${optname#--}"
optname=$(echo "$optname" | sed 's/-/_/g')
#看看是否在opt列表中，不在的话就会返回错误
if is_in $optname $CMDLINE_SET; then
eval $optname='$optval'
elif is_in $optname $CMDLINE_APPEND; then
append $optname "$optval"
else
die_unknown $opt
fi
;;
esac
done
在这里需要注意，取出opt的值一般都是“--extra-ldflags=XXX”的形式，通过“${opt#*=}”截取获得“=”号后面的内容作为optval，对于“--extra-ldflags=XXX”来说，optval取值为“XXX”。 然后根据opt种类的不同，以及optval取值的不同，分别作不同的处理。
Check Compiler
Check Compiler用于检查编译器。这部分代码还没有细看，暂时不做分析。die_license_disabled()
die_license_disabled()用于检查是否指定了特定了License。像libx264、libfaac这些第三方类库，都需要指定特定的License才可以使用（例如libfaac必须指定nonfree）。开启这些第三方类库后如果没有指定License，Configure会立刻退出。这部分代码如下所示。#检查License #GPL die_license_disabled gpl libcdio die_license_disabled gpl libx264 die_license_disabled gpl libxavs die_license_disabled gpl libxvid die_license_disabled gpl x11grab #nonfree die_license_disabled nonfree libaacplus die_license_disabled nonfree libfaac die_license_disabled nonfree openssl #Version3 die_license_disabled version3 libopencore_amrnb die_license_disabled version3 libopencore_amrwb die_license_disabled version3 libvo_aacenc die_license_disabled version3 libvo_amrwbenc
其中涉及到一个函数die_license_disabled()，它的定义如下所示。
#不符合License则立刻结束
die_license_disabled() {
enabled $1 || { enabled $2 && die "$2 is $1 and --enable-$1 is not specified."; }
} 从定义可以看出，die_license_disabled()首先会看第1个参数（对应“gpl”，“nonfree”）对应的组件是否enable，如果已经enable，则正常运行完函数；如果没有enable，则会检查第2个参数（对应“libx264”，“libfaac”）是否enable，如果第2个参数enable了，就会报错退出。
Check

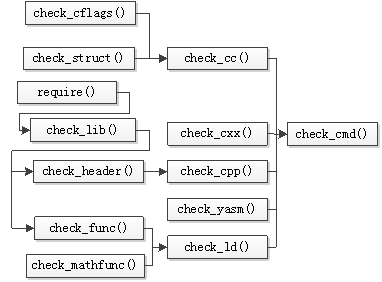

Check部分是Configure中最重要的部分。该部分用于检查编译环境（例如数学函数，第三方类库等）。这一部分涉及到很多的函数。包括check_cflags()、check_struct()、require()、check_lib()、check_header()、check_func()、check_mathfunc()等等。这些函数之间的调用关系如下图所示。
check_func()：用于检查函数。下面详细看看这几个函数。
check_header()：用于检查头文件。
check_func_headers()：用于同时检查头文件和函数。
check_mathfunc()：用于检查数学类函数。
require()：检查第三方类库。
check_cflags ()：用于检查编译器的cflags标志参数。
check_func()
check_func()用于检查函数。它的输入参数一个函数名。Configure中与check_func()有关的代码如下所示。check_func isatty
check_func localtime_r
check_func ${malloc_prefix}memalign && enable memalign
check_func mkstemp
check_func mmap
check_func ${malloc_prefix}posix_memalign && enable posix_memalign
check_func setrlimit
check_func strerror_r
check_func strptime
check_func sched_getaffinity
check_func sysconf
check_func sysctl check_func()的定义如下所示。
check_func(){
log check_func "$@"
func=$1
shift
disable $func
check_ld "cc" "$@" <
从check_func()的定义可以看出，该函数首先将输入的第1个参数赋值给func，然后生成一个下述内容的C语言文件。 extern int $func();
int main(void){ $func(); }
最后调用check_ld()完成编译测试。check_ld()的定义如下所示。 check_ld(){
log check_ld "$@"
type=$1
shift 1
flags=''
libs=''
for f; do
test "${f}" = "${f#-l}" && flags="$flags $f" || libs="$libs $f"
done
check_$type $($filter_cflags $flags) || return
check_cmd $ld $LDFLAGS $flags -o $TMPE $TMPO $libs $extralibs
}
其中check_cmd()是个很简单的函数，可以输出日志，如下所示。 check_cmd(){
log "$@"
"$@" >> $logfile 2>&1
}
例如，“check_func mkstemp”相当于编译了下述代码。 extern int mkstemp(); int main(void){ mkstemp(); } check_header()
check_header()用于检查头文件。Configure中与check_header()有关的代码如下所示。 check_header dlfcn.h
check_header dxva2api.h -D_WIN32_WINNT=0x0600
check_header libcrystalhd/libcrystalhd_if.h
check_header malloc.h
check_header poll.h
check_header sys/mman.h
check_header sys/param.h
check_header sys/resource.h
check_header sys/select.h
check_header termios.h
check_header vdpau/vdpau.h
check_header vdpau/vdpau_x11.h
check_header X11/extensions/XvMClib.h
check_header asm/types.h
check_header()的定义如下所示。 check_header(){
log check_header "$@"
header=$1
shift
disable_safe $header
check_cpp "$@" <
int x;
EOF
}
从check_header()的定义可以看出，该函数首先将输入的第1个参数赋值给header，然后生成一个下述内容的C语言文件。 #include <$header>
int x;
最后调用check_cpp()完成编译测试。check_cpp()的定义如下所示。 check_cpp(){
log check_cpp "$@"
cat > $TMPC
log_file $TMPC
#-E选项，可以让编译器在预处理后停止，并输出预处理结果。
check_cmd $cc $CPPFLAGS $CFLAGS "$@" -E -o $TMPO $TMPC
}
例如，“check_header malloc.h”相当于处理以下C语言文件。 #include
int x;
check_func_headers()
check_func_headers()用于同时检查头文件和函数。Configure中与check_header()有关的代码如下所示。 check_func_headers conio.h kbhit
check_func_headers windows.h PeekNamedPipe
check_func_headers io.h setmode
check_func_headers lzo/lzo1x.h lzo1x_999_compress
check_func_headers windows.h GetProcessAffinityMask
check_func_headers windows.h GetProcessTimes
check_func_headers windows.h MapViewOfFile
check_func_headers windows.h VirtualAlloc
check_func_headers()的定义如下所示。 check_func_headers(){
log check_func_headers "$@"
headers=$1
funcs=$2
shift 2
{
for hdr in $headers; do
echo "#include <$hdr>"
done
for func in $funcs; do
echo "long check_$func(void) { return (long) $func; }"
done
echo "int main(void) { return 0; }"
} | check_ld "cc" "$@" && enable $funcs && enable_safe $headers
}
从check_func_headers()的定义可以看出，该函数首先将输入的第1个参数赋值给header，第2个参数赋值给funcs，然后生成一个下述内容的C语言文件。 #include <$hdr>
long check_$func (void) { return (long) $func; }
int main(void) { return 0; }
例如，“check_func_headers windows.h PeekNamedPipe”相当于处理以下C语言文件。 #include
long check_PeekNamedPipe (void) { return (long) PeekNamedPipe; }
int main(void) { return 0; }
check_mathfunc()
check_mathfunc()用于检查数学类函数。Configure中与check_mathfunc()有关的代码如下所示。 check_mathfunc cbrtf
check_mathfunc exp2
check_mathfunc exp2f
check_mathfunc llrint
check_mathfunc llrintf
check_mathfunc log2
check_mathfunc log2f
check_mathfunc lrint
check_mathfunc lrintf
check_mathfunc round
check_mathfunc roundf
check_mathfunc trunc
check_mathfunc truncf
check_mathfunc()的定义如下所示。 check_mathfunc(){
log check_mathfunc "$@"
#数学函数名称
func=$1
shift
disable $func
check_ld "cc" "$@" <
float foo(float f) { return $func(f); }
int main(void){ return (int) foo; }
EOF
}
从check_mathfunc()的定义可以看出，该函数首先将输入的第1个参数赋值给func，然后生成一个下述内容的C语言文件。 #include
float foo(float f) { return $func(f); }
int main(void){ return (int) foo; }
最后调用check_ld()完成编译测试。 例如，“check_mathfunc exp2”相当于编译连接了下面这个C文件。 #include
float foo(float f) { return exp2(f); }
int main(void){ return (int) foo; }
require()
require()用于检查第三方类库。Configure中与require()有关的代码如下所示。 #检查第三方类库
# these are off by default, so fail if requested and not available
#require()函数参数的规范：（名称，头文件，函数名，附加选项）
#require2()函数参数规范类似
enabled avisynth && require2 vfw32 "windows.h vfw.h" AVIFileInit -lavifil32
enabled frei0r && { check_header frei0r.h || die "ERROR: frei0r.h header not found"; }
enabled gnutls && require_pkg_config gnutls gnutls/gnutls.h gnutls_global_init
enabled libaacplus && require "libaacplus >= 2.0.0" aacplus.h aacplusEncOpen -laacplus
enabled libass && require_pkg_config libass ass/ass.h ass_library_init
enabled libcelt && require libcelt celt/celt.h celt_decode -lcelt0 &&
{ check_lib celt/celt.h celt_decoder_create_custom -lcelt0 ||
die "ERROR: libcelt version must be >= 0.11.0."; }
enabled libdc1394 && require_pkg_config libdc1394-2 dc1394/dc1394.h dc1394_new
enabled libdirac && require_pkg_config dirac
"libdirac_decoder/dirac_parser.h libdirac_encoder/dirac_encoder.h"
"dirac_decoder_init dirac_encoder_init"
#测试libfaac
enabled libfaac && require2 libfaac "stdint.h faac.h" faacEncGetVersion -lfaac
enabled libfreetype && require_pkg_config freetype2 "ft2build.h freetype/freetype.h" FT_Init_FreeType
enabled libgsm && require libgsm gsm/gsm.h gsm_create -lgsm
enabled libmodplug && require libmodplug libmodplug/modplug.h ModPlug_Load -lmodplug
enabled libmp3lame && require "libmp3lame >= 3.98.3" lame/lame.h lame_set_VBR_quality -lmp3lame
enabled libnut && require libnut libnut.h nut_demuxer_init -lnut
enabled libopencore_amrnb && require libopencore_amrnb opencore-amrnb/interf_dec.h Decoder_Interface_init -lopencore-amrnb
enabled libopencore_amrwb && require libopencore_amrwb opencore-amrwb/dec_if.h D_IF_init -lopencore-amrwb
enabled libopencv && require_pkg_config opencv opencv/cxcore.h cvCreateImageHeader
enabled libopenjpeg && require libopenjpeg openjpeg.h opj_version -lopenjpeg
enabled libpulse && require_pkg_config libpulse-simple pulse/simple.h pa_simple_new
enabled librtmp && require_pkg_config librtmp librtmp/rtmp.h RTMP_Socket
enabled libschroedinger && require_pkg_config schroedinger-1.0 schroedinger/schro.h schro_init
enabled libspeex && require libspeex speex/speex.h speex_decoder_init -lspeex
enabled libstagefright_h264 && require_cpp libstagefright_h264 "binder/ProcessState.h media/stagefright/MetaData.h
media/stagefright/MediaBufferGroup.h media/stagefright/MediaDebug.h media/stagefright/MediaDefs.h
media/stagefright/OMXClient.h media/stagefright/OMXCodec.h" android::OMXClient -lstagefright -lmedia -lutils -lbinder
enabled libtheora && require libtheora theora/theoraenc.h th_info_init -ltheoraenc -ltheoradec -logg
enabled libutvideo && require_cpp utvideo "stdint.h stdlib.h utvideo/utvideo.h utvideo/Codec.h" 'CCodec*' -lutvideo -lstdc++
enabled libv4l2 && require_pkg_config libv4l2 libv4l2.h v4l2_ioctl
enabled libvo_aacenc && require libvo_aacenc vo-aacenc/voAAC.h voGetAACEncAPI -lvo-aacenc
enabled libvo_amrwbenc && require libvo_amrwbenc vo-amrwbenc/enc_if.h E_IF_init -lvo-amrwbenc
enabled libvorbis && require libvorbis vorbis/vorbisenc.h vorbis_info_init -lvorbisenc -lvorbis -logg
enabled libvpx && {
enabled libvpx_decoder && { check_lib2 "vpx/vpx_decoder.h vpx/vp8dx.h" vpx_codec_dec_init_ver -lvpx ||
die "ERROR: libvpx decoder version must be >=0.9.1"; }
enabled libvpx_encoder && { check_lib2 "vpx/vpx_encoder.h vpx/vp8cx.h" "vpx_codec_enc_init_ver VPX_CQ" -lvpx ||
die "ERROR: libvpx encoder version must be >=0.9.6"; } }
#测试libx264
enabled libx264 && require libx264 x264.h x264_encoder_encode -lx264 &&
{ check_cpp_condition x264.h "X264_BUILD >= 118" ||
die "ERROR: libx264 version must be >= 0.118."; }
enabled libxavs && require libxavs xavs.h xavs_encoder_encode -lxavs
enabled libxvid && require libxvid xvid.h xvid_global -lxvidcore
enabled openal && { { for al_libs in "${OPENAL_LIBS}" "-lopenal" "-lOpenAL32"; do
check_lib 'AL/al.h' alGetError "${al_libs}" && break; done } ||
die "ERROR: openal not found"; } &&
{ check_cpp_condition "AL/al.h" "defined(AL_VERSION_1_1)" ||
die "ERROR: openal version must be 1.1 or compatible"; }
enabled mlib && require mediaLib mlib_types.h mlib_VectorSub_S16_U8_Mod -lmlib
enabled openssl && { check_lib openssl/ssl.h SSL_library_init -lssl -lcrypto ||
check_lib openssl/ssl.h SSL_library_init -lssl32 -leay32 ||
check_lib openssl/ssl.h SSL_library_init -lssl -lcrypto -lws2_32 -lgdi32 ||
die "ERROR: openssl not found"; }
由于上述代码量比较大。在这里我们只选择一个典型的例子——libx264来看一下。require()检测libx264的定义如下所示。 #测试libx264
require libx264 x264.h x264_encoder_encode -lx264 &&
{ check_cpp_condition x264.h "X264_BUILD >= 118" ||
die "ERROR: libx264 version must be >= 0.118."; }
从测试libx264的代码可以看出，require()函数的使用方式为： require {名称} {头文件} {函数名} {附加选项} require()函数定义如下所示。 #检查依赖项的时候使用
require(){
name="$1"
header="$2"
func="$3"
shift 3
check_lib $header $func "$@" || die "ERROR: $name not found"
}
从require()的定义可以看出，该函数将第1个参数赋值给name，第2个参数赋值给header，第3个参数赋值给func。最后调用check_lib()函数。 check_lib()的定义如下所示。 #检查类库
check_lib(){
log check_lib "$@"
header="$1"
func="$2"
shift 2
check_header $header && check_func $func "$@" && add_extralibs "$@"
}
可以看出check_lib()调用了check_header()、check_func()等几个函数完成检查工作。这两个函数在前文中已经介绍过，就不再重复了。 例如检测libx264的时候调用check_header()会生成以下临时文件： #include int x;
check_cflags ()
check_cflags()用于检查编译器的cflags标志参数。Configure中与check_cflags()有关的代码如下所示。 #添加一些编译选项
# add some useful compiler flags if supported
check_cflags -Wdeclaration-after-statement
check_cflags -Wall
check_cflags -Wno-parentheses
check_cflags -Wno-switch
check_cflags -Wno-format-zero-length
check_cflags -Wdisabled-optimization
check_cflags -Wpointer-arith
check_cflags -Wredundant-decls
check_cflags -Wno-pointer-sign
check_cflags -Wcast-qual
check_cflags -Wwrite-strings
check_cflags -Wtype-limits
check_cflags -Wundef
check_cflags -Wmissing-prototypes
check_cflags -Wno-pointer-to-int-cast
check_cflags -Wstrict-prototypes
check_cflags()函数的定义如下所示。
check_cflags(){
log check_cflags "$@"
set -- $($filter_cflags "$@")
check_cc "$@" <
从定义可以看出，check_cflags()调用了check_cc()执行命令。整个代码只有一行： int x;
check_cc()的定义如下所示。 check_cc(){ log check_cc "$@" cat > $TMPC log_file $TMPC #很多检查都调用了这个check_cmd #-c 只编译不链接 check_cmd $cc $CPPFLAGS $CFLAGS "$@" -c -o $TMPO $TMPC } 可以看出check_cflags()将输入参数设置到命令行中，并最终调用了check_cmd。 除了上述几个函数之外，还有其他的一些检查编译环境的函数，在这里就不一一列举了。
Echo info
Echo info用于在控制台上打印配置信息。Configure中该部分的代码如下所示。 #在控制台输出信息
echo "install prefix $prefix"
echo "source path $source_path"
echo "C compiler $cc"
echo "ARCH $arch ($cpu)"
if test "$build_suffix" != ""; then
echo "build suffix $build_suffix"
fi
if test "$progs_suffix" != ""; then
echo "progs suffix $progs_suffix"
fi
if test "$extra_version" != ""; then
echo "version string suffix $extra_version"
fi
#${}的特异功能：
#${file-my.file.txt}假如 $file 为空值，则使用 my.file.txt 作默认值。(保留没设定及非空值)
#在这里，如果某个变量为空值，则取默认值为no
echo "big-endian ${bigendian-no}"
echo "runtime cpu detection ${runtime_cpudetect-no}"
if enabled x86; then
echo "${yasmexe} ${yasm-no}"
echo "MMX enabled ${mmx-no}"
echo "MMX2 enabled ${mmx2-no}"
echo "3DNow! enabled ${amd3dnow-no}"
echo "3DNow! extended enabled ${amd3dnowext-no}"
echo "SSE enabled ${sse-no}"
echo "SSSE3 enabled ${ssse3-no}"
echo "AVX enabled ${avx-no}"
echo "CMOV enabled ${cmov-no}"
echo "CMOV is fast ${fast_cmov-no}"
echo "EBX available ${ebx_available-no}"
echo "EBP available ${ebp_available-no}"
fi
if enabled arm; then
echo "ARMv5TE enabled ${armv5te-no}"
echo "ARMv6 enabled ${armv6-no}"
echo "ARMv6T2 enabled ${armv6t2-no}"
echo "ARM VFP enabled ${armvfp-no}"
echo "IWMMXT enabled ${iwmmxt-no}"
echo "NEON enabled ${neon-no}"
fi
if enabled mips; then
echo "MMI enabled ${mmi-no}"
fi
if enabled ppc; then
echo "AltiVec enabled ${altivec-no}"
echo "PPC 4xx optimizations ${ppc4xx-no}"
echo "dcbzl available ${dcbzl-no}"
fi
if enabled sparc; then
echo "VIS enabled ${vis-no}"
fi
echo "debug symbols ${debug-no}"
echo "strip symbols ${stripping-no}"
echo "optimize for size ${small-no}"
echo "optimizations ${optimizations-no}"
echo "static ${static-no}"
echo "shared ${shared-no}"
echo "postprocessing support ${postproc-no}"
echo "new filter support ${avfilter-no}"
echo "network support ${network-no}"
echo "threading support ${thread_type-no}"
echo "safe bitstream reader ${safe_bitstream_reader-no}"
echo "SDL support ${sdl-no}"
echo "Sun medialib support ${mlib-no}"
echo "libdxva2 enabled ${dxva2-no}"
echo "libva enabled ${vaapi-no}"
echo "libvdpau enabled ${vdpau-no}"
echo "AVISynth enabled ${avisynth-no}"
echo "frei0r enabled ${frei0r-no}"
echo "gnutls enabled ${gnutls-no}"
echo "libaacplus enabled ${libaacplus-no}"
echo "libass enabled ${libass-no}"
echo "libcdio support ${libcdio-no}"
echo "libcelt enabled ${libcelt-no}"
echo "libdc1394 support ${libdc1394-no}"
echo "libdirac enabled ${libdirac-no}"
echo "libfaac enabled ${libfaac-no}"
echo "libgsm enabled ${libgsm-no}"
echo "libmodplug enabled ${libmodplug-no}"
echo "libmp3lame enabled ${libmp3lame-no}"
echo "libnut enabled ${libnut-no}"
echo "libopencore-amrnb support ${libopencore_amrnb-no}"
echo "libopencore-amrwb support ${libopencore_amrwb-no}"
echo "libopencv support ${libopencv-no}"
echo "libopenjpeg enabled ${libopenjpeg-no}"
echo "libpulse enabled ${libpulse-no}"
echo "librtmp enabled ${librtmp-no}"
echo "libschroedinger enabled ${libschroedinger-no}"
echo "libspeex enabled ${libspeex-no}"
echo "libstagefright-h264 enabled ${libstagefright_h264-no}"
echo "libtheora enabled ${libtheora-no}"
echo "libutvideo enabled ${libutvideo-no}"
echo "libv4l2 enabled ${libv4l2-no}"
echo "libvo-aacenc support ${libvo_aacenc-no}"
echo "libvo-amrwbenc support ${libvo_amrwbenc-no}"
echo "libvorbis enabled ${libvorbis-no}"
echo "libvpx enabled ${libvpx-no}"
echo "libx264 enabled ${libx264-no}"
echo "libxavs enabled ${libxavs-no}"
echo "libxvid enabled ${libxvid-no}"
echo "openal enabled ${openal-no}"
echo "openssl enabled ${openssl-no}"
echo "zlib enabled ${zlib-no}"
echo "bzlib enabled ${bzlib-no}"
echo
for type in decoder encoder hwaccel parser demuxer muxer protocol filter bsf indev outdev; do
echo "Enabled ${type}s:"
eval list=$$(toupper $type)_LIST
print_enabled '_*' $list | sort | pr -r -3 -t
echo
done
license="LGPL version 2.1 or later"
if enabled nonfree; then
license="nonfree and unredistributable"
elif enabled gplv3; then
license="GPL version 3 or later"
elif enabled lgplv3; then
license="LGPL version 3 or later"
elif enabled gpl; then
license="GPL version 2 or later"
fi
echo "License: $license"
有关这段代码，有一个地方需要注意：很多的${}符号中的字符为“XXX-no”，这种格式的意思是如果XXX取值为空，则使用默认值“no”（这个规则比较奇特）。 Write basic info
Write basic info用于向config.mak中写入一些基本信息。Configure中该部分的代码如下所示。 #创建config.mak和config.h
#根据情况也会创建config.asm
echo "Creating config.mak and config.h..."
test -e Makefile || $ln_s "$source_path/Makefile" .
enabled stripping || strip="echo skipping strip"
#重要：需要输出的文件
#TMPH是一个临时文件，最终会拷贝给config.h
config_files="$TMPH config.mak"
#写入config.mak文件
#首先写入一些基本信息
#"< config.mak <> config.mak
eval echo "${lcname}_VERSION_MAJOR=$${name}_VERSION_MAJOR" >> config.mak
}
#获取版本
get_version LIBAVCODEC libavcodec/version.h
get_version LIBAVDEVICE libavdevice/avdevice.h
get_version LIBAVFILTER libavfilter/version.h
get_version LIBAVFORMAT libavformat/version.h
get_version LIBAVUTIL libavutil/avutil.h
get_version LIBPOSTPROC libpostproc/postprocess.h
get_version LIBSWRESAMPLE libswresample/swresample.h
get_version LIBSWSCALE libswscale/swscale.h
关于这段代码，有以下几点需要注意： （1）“cat > config.mak <print_config() print_config()用于向config.h、config.mak、config.asm中写入所有配置信息。Configure中该部分的代码如下所示。 #输出所有的配置信息包含3类：
#以“ARCH_”开头，包含系统架构信息
#以“HAVE_”开头，包含系统特征信息
#以“CONFIG_”开头，包含编译配置（数量最多，包含协议、复用器、编解码器等的配置，将近1000行）
#config_files
print_config ARCH_ "$config_files" $ARCH_LIST
print_config HAVE_ "$config_files" $HAVE_LIST
print_config CONFIG_ "$config_files" $CONFIG_LIST
$CONFIG_EXTRA
$ALL_COMPONENTS
从源代码中可以看出，其中调用了一个函数print_config()。print_config()的源代码如下所示。 # 输出文本到config.mak，config.h等文件
# 该函数的示例调用方法：print_config CONFIG_ "$config_files" $CONFIG_LIST
print_config(){
# 前缀
pfx=$1
# 文件列表
files=$2
# 位置参数可以用shift命令左移。比如shift 3表示原来的$4现在变成$1
shift 2
#for循环中，当没有in指定列表时，for会默认取命令行参数列表。
#在这里取的就是$CONFIG_LIST 等
for cfg; do
# toupper()：转换为大写
ucname="$(toupper $cfg)"
# files= config.h config.mak config.asm
# 循环输出
for f in $files; do
# "x#*/"代表去取x的第一个slash之后的所有内容（不包括slash）
# "#"代表删除从前往后最小匹配的内容
# "f##*."代表去取f的第一个"."之后的所有内容。在这里是“h”、“mak”等
# 在这里print_config_h(),print_config_mak(),print_config_asm()
"print_config_${f##*.}" $cfg ${pfx}${ucname} >>$f
done
done
}
可以看出print_config()的第1个参数是写入参数的前缀（例如可以取“ARCH_”、“HAVE_”、“CONFIG_”）；第2个参数是文件列表（例如可以是“config.h config.mak config.asm”）；第3个以后的的参数就是需要写入的变量（例如$ARCH_LIST、$CONFIG_LIST等）。 print_config()有两层循环：外层循环遍历了所有的变量（例如$CONFIG_LIST），内层循环遍历了所有文件（例如“config.h config.mak”），其中调用了一个函数print_config_XXX()，其中“XXX”根据文件后缀的不同可以取不同的值（例如“h”、“mak”）。下面举例看两个函数：print_config_h()和print_config_mak()。
print_config_h()
print_config_h()用于输出配置信息至config.h。该函数的源代码如下所示。 #输出config.h的时候使用
#调用示例：print_config_h ffplay CONFIG_FFPLAY
print_config_h(){
#command1 && command2
#&&左边的命令（命令1）返回真(即返回0，成功被执行）后，&&右边的命令（命令2）才能够被执行
#command1 || command2
#||左边的命令（命令1）未执行成功，那么就执行||右边的命令（命令2）
enabled $1 && v=1 || v=0
#示例：#define CONFIG_FFPLAY 1
echo "#define $2 $v"
}
从源代码中可以看出，参数1是变量名称，参数2是经过处理后准备写入文件的变量名称（变量名转换成了大写并且添加了前缀）。如果参数1所指向的变量是enabled的，那么v取值为1，那么写入文件的格式就是： #define {处理后变量名称} 1 如果参数1所指向的变量不是enabled的，那么v取值为0，那么写入文件的格式就是： #define {处理后变量名称} 0 print_config_mak()
print_config_mak()用于输出配置信息至config.mak。该函数的源代码如下所示。 #输出config.mak的时候使用 print_config_mak(){ enabled $1 && v= || v=! echo "$v$2=yes" } 从源代码中可以看出print_config_mak()的原理和print_config_h()是类似的。如果变量是enabled的，那么写入文件的格式就是： {处理后变量名称}=yes 如果变量不是enabled的，那么写入文件的格式就是： !{处理后变量名称}=yes print_enabled()
print_enabled()用于向config.mak写入所有enabled的组件信息。这方面功能通过print_enabled()函数完成，就不再详细分析了。 pkgconfig_generate()
pkgconfig_generate()用于向libavXXX/libavXXX.pc中写入pkgconfig信息（XXX代表avcodec，avformat等）。这方面的代码还没有细看，以后有机会再进行补充。 源代码（包含注释）
至此，FFmpeg的Configure的流程就大致梳理完毕了，最后附上和Configure有关的config.mak、config.h以及Configure本身的源代码。 config.mak源代码
# FFmpeg config.mak
#
# 注释：雷霄骅
# leixiaohua1020@126.com
# http://blog.csdn.net/leixiaohua1020
#
# Configure脚本生成的Makefile，包含了各种配置信息。
#
# Automatically generated by configure - do not modify!
#基本信息
ifndef FFMPEG_CONFIG_MAK
FFMPEG_CONFIG_MAK=1
FFMPEG_CONFIGURATION=
#各种路径========================================
prefix=/usr/local
LIBDIR=$(DESTDIR)${prefix}/lib
SHLIBDIR=$(DESTDIR)${prefix}/bin
INCDIR=$(DESTDIR)${prefix}/include
BINDIR=$(DESTDIR)${prefix}/bin
DATADIR=$(DESTDIR)${prefix}/share/ffmpeg
MANDIR=$(DESTDIR)${prefix}/share/man
#是个相对路径
SRC_PATH=.
ifndef MAIN_MAKEFILE
SRC_PATH:=$(SRC_PATH:.%=..%)
endif
#工具集==========================================
CC_IDENT=gcc 4.6.2 (GCC)
#架构
ARCH=x86
#编译器
CC=gcc
CXX=g++
AS=gcc
#链接器
LD=gcc
DEPCC=gcc
#汇编器
YASM=yasm
YASMDEP=yasm
#生成静态库.a工具
AR=ar
RANLIB=ranlib
CP=cp -p
LN_S=ln -sf
STRIP=strip
#参数集==========================================
#编译器的参数
CPPFLAGS= -D_ISOC99_SOURCE -D_FILE_OFFSET_BITS=64 -D_LARGEFILE_SOURCE -U__STRICT_ANSI__
CFLAGS= -std=c99 -fno-common -fomit-frame-pointer -I/include/SDL -D_GNU_SOURCE=1 -Dmain=SDL_main -g -Wdeclaration-after-statement -Wall -Wno-parentheses -Wno-switch -Wno-format-zero-length -Wdisabled-optimization -Wpointer-arith -Wredundant-decls -Wno-pointer-sign -Wcast-qual -Wwrite-strings -Wtype-limits -Wundef -Wmissing-prototypes -Wno-pointer-to-int-cast -Wstrict-prototypes -O3 -fno-math-errno -fno-signed-zeros -fno-tree-vectorize -Werror=implicit-function-declaration -Werror=missing-prototypes
CXXFLAGS= -D__STDC_CONSTANT_MACROS
ASFLAGS= -g
#目标文件有关的参数
AS_O=-o $@
CC_O=-o $@
CXX_O=-o $@
#链接器有关的参数
LDFLAGS= -Wl,--as-needed -Wl,--warn-common -Wl,-rpath-link=libpostproc:libswresample:libswscale:libavfilter:libavdevice:libavformat:libavcodec:libavutil
FFSERVERLDFLAGS=-Wl,-E
SHFLAGS=-shared -Wl,--output-def,$$(@:$(SLIBSUF)=.def) -Wl,--out-implib,$(SUBDIR)lib$(SLIBNAME:$(SLIBSUF)=.dll.a) -Wl,--enable-runtime-pseudo-reloc -Wl,--enable-auto-image-base -Wl,-Bsymbolic -Wl,--version-script,$(SUBDIR)lib$(NAME).ver
YASMFLAGS=-f win32 -DPREFIX
#前缀后缀========================================
BUILDSUF=
PROGSSUF=
#${NAME}位于每个liavXXX/Makefile中，例如avformat
FULLNAME=$(NAME)$(BUILDSUF)
LIBPREF=lib
LIBSUF=.a
#例如libavformat.a
LIBNAME=$(LIBPREF)$(FULLNAME)$(LIBSUF)
SLIBPREF=
SLIBSUF=.dll
EXESUF=.exe
EXTRA_VERSION=
DEPFLAGS=$(CPPFLAGS) $(CFLAGS) -MM
CCDEP=
CXXDEP=$(DEPCC) $(DEPFLAGS) $< | sed -e "/^#.*/d" -e "s,^[[:space:]]*$(*F)\.o,$(@D)/$(*F).o," > $(@:.o=.d)
ASDEP=
CC_DEPFLAGS=-MMD -MF $(@:.o=.d) -MT $@
AS_DEPFLAGS=-MMD -MF $(@:.o=.d) -MT $@
HOSTCC=gcc
HOSTCFLAGS=-D_ISOC99_SOURCE -O3 -g -std=c99 -Wall
HOSTEXESUF=.exe
HOSTLDFLAGS=
HOSTLIBS=-lm
TARGET_EXEC=
TARGET_PATH=$(CURDIR)
#SDL
SDL_LIBS=-L/lib -lmingw32 -lSDLmain -lSDL -mwindows
SDL_CFLAGS=-I/include/SDL -D_GNU_SOURCE=1 -Dmain=SDL_main
LIB_INSTALL_EXTRA_CMD=$$(RANLIB) "$(LIBDIR)/$(LIBNAME)"
#链接
EXTRALIBS=-lavicap32 -lws2_32 -L/lib -lmingw32 -lSDLmain -lSDL -mwindows -lm -lz -lpsapi
INSTALL=install
LIBTARGET=i386
#例如libavformat.dll
SLIBNAME=$(SLIBPREF)$(FULLNAME)$(SLIBSUF)
#LIBVERSION变量位于library.mak
#例如libavformat-53.dll
#生成的Dll似乎就是这个版本的
SLIBNAME_WITH_VERSION=$(SLIBPREF)$(FULLNAME)-$(LIBVERSION)$(SLIBSUF)
#例如libavformat-53.31.100.dll
SLIBNAME_WITH_MAJOR=$(SLIBPREF)$(FULLNAME)-$(LIBMAJOR)$(SLIBSUF)
SLIB_CREATE_DEF_CMD=
#生成导出库lib，会调用lib.exe
SLIB_EXTRA_CMD=-lib.exe /machine:$(LIBTARGET) /def:$$(@:$(SLIBSUF)=.def) /out:$(SUBDIR)$(SLIBNAME:$(SLIBSUF)=.lib)
SLIB_INSTALL_NAME=$(SLIBNAME_WITH_MAJOR)
SLIB_INSTALL_LINKS=
SLIB_INSTALL_EXTRA_LIB=lib$(SLIBNAME:$(SLIBSUF)=.dll.a) $(SLIBNAME_WITH_MAJOR:$(SLIBSUF)=.def)
SLIB_INSTALL_EXTRA_SHLIB=$(SLIBNAME:$(SLIBSUF)=.lib)
SAMPLES:=$(FATE_SAMPLES)
NOREDZONE_FLAGS=-mno-red-zone
#版本信息========================================
libavcodec_VERSION=53.60.100
libavcodec_VERSION_MAJOR=53
libavdevice_VERSION=53.4.100
libavdevice_VERSION_MAJOR=53
libavfilter_VERSION=2.60.100
libavfilter_VERSION_MAJOR=2
libavformat_VERSION=53.31.100
libavformat_VERSION_MAJOR=53
libavutil_VERSION=51.34.101
libavutil_VERSION_MAJOR=51
libpostproc_VERSION=52.0.100
libpostproc_VERSION_MAJOR=52
libswresample_VERSION=0.6.100
libswresample_VERSION_MAJOR=0
libswscale_VERSION=2.1.100
libswscale_VERSION_MAJOR=2
#组件配置========================================
#ARCH_
!ARCH_ALPHA=yes
!ARCH_ARM=yes
!ARCH_AVR32=yes
!ARCH_AVR32_AP=yes
!ARCH_AVR32_UC=yes
!ARCH_BFIN=yes
!ARCH_IA64=yes
!ARCH_M68K=yes
!ARCH_MIPS=yes
!ARCH_MIPS64=yes
!ARCH_PARISC=yes
!ARCH_PPC=yes
!ARCH_PPC64=yes
!ARCH_S390=yes
!ARCH_SH4=yes
!ARCH_SPARC=yes
!ARCH_SPARC64=yes
!ARCH_TOMI=yes
ARCH_X86=yes
ARCH_X86_32=yes
!ARCH_X86_64=yes
#HAVE_
!HAVE_ALTIVEC=yes
HAVE_AMD3DNOW=yes
HAVE_AMD3DNOWEXT=yes
!HAVE_ARMV5TE=yes
!HAVE_ARMV6=yes
!HAVE_ARMV6T2=yes
!HAVE_ARMVFP=yes
HAVE_AVX=yes
!HAVE_IWMMXT=yes
!HAVE_MMI=yes
HAVE_MMX=yes
HAVE_MMX2=yes
//略……
HAVE_YASM=yes
#CONFIG_
CONFIG_BSFS=yes
CONFIG_DECODERS=yes
CONFIG_DEMUXERS=yes
CONFIG_ENCODERS=yes
CONFIG_FILTERS=yes
!CONFIG_HWACCELS=yes
CONFIG_INDEVS=yes
CONFIG_MUXERS=yes
CONFIG_OUTDEVS=yes
CONFIG_PARSERS=yes
CONFIG_PROTOCOLS=yes
CONFIG_FFPLAY=yes
CONFIG_FFPROBE=yes
!CONFIG_FFSERVER=yes
CONFIG_FFMPEG=yes
!CONFIG_AVPLAY=yes
!CONFIG_AVPROBE=yes
!CONFIG_AVSERVER=yes
CONFIG_AANDCT=yes
CONFIG_AC3DSP=yes
CONFIG_AVCODEC=yes
CONFIG_AVDEVICE=yes
CONFIG_AVFILTER=yes
CONFIG_AVFORMAT=yes
!CONFIG_AVISYNTH=yes
!CONFIG_BZLIB=yes
!CONFIG_CRYSTALHD=yes
CONFIG_DCT=yes
!CONFIG_DOC=yes
CONFIG_DWT=yes
!CONFIG_DXVA2=yes
CONFIG_FASTDIV=yes
CONFIG_FFT=yes
!CONFIG_FREI0R=yes
!CONFIG_GNUTLS=yes
CONFIG_GOLOMB=yes
!CONFIG_GPL=yes
!CONFIG_GRAY=yes
CONFIG_H264CHROMA=yes
CONFIG_H264DSP=yes
CONFIG_H264PRED=yes
!CONFIG_HARDCODED_TABLES=yes
CONFIG_HUFFMAN=yes
!CONFIG_LIBAACPLUS=yes
!CONFIG_LIBASS=yes
!CONFIG_LIBCDIO=yes
!CONFIG_LIBCELT=yes
!CONFIG_LIBDC1394=yes
!CONFIG_LIBDIRAC=yes
!CONFIG_LIBFAAC=yes
!CONFIG_LIBFREETYPE=yes
!CONFIG_LIBGSM=yes
!CONFIG_LIBMODPLUG=yes
!CONFIG_LIBMP3LAME=yes
!CONFIG_LIBNUT=yes
!CONFIG_LIBOPENCORE_AMRNB=yes
!CONFIG_LIBOPENCORE_AMRWB=yes
!CONFIG_LIBOPENCV=yes
!CONFIG_LIBOPENJPEG=yes
!CONFIG_LIBPULSE=yes
!CONFIG_LIBRTMP=yes
!CONFIG_LIBSCHROEDINGER=yes
!CONFIG_LIBSPEEX=yes
!CONFIG_LIBSTAGEFRIGHT_H264=yes
!CONFIG_LIBTHEORA=yes
!CONFIG_LIBUTVIDEO=yes
!CONFIG_LIBV4L2=yes
!CONFIG_LIBVO_AACENC=yes
!CONFIG_LIBVO_AMRWBENC=yes
!CONFIG_LIBVORBIS=yes
!CONFIG_LIBVPX=yes
!CONFIG_LIBX264=yes
!CONFIG_LIBXAVS=yes
!CONFIG_LIBXVID=yes
#此处省略将近1000条…
CONFIG_RTMP_PROTOCOL=yes
CONFIG_RTMPT_PROTOCOL=yes
CONFIG_RTMPE_PROTOCOL=yes
CONFIG_RTMPTE_PROTOCOL=yes
CONFIG_RTMPS_PROTOCOL=yes
CONFIG_RTP_PROTOCOL=yes
CONFIG_TCP_PROTOCOL=yes
!CONFIG_TLS_PROTOCOL=yes
CONFIG_UDP_PROTOCOL=yes
#Test
ACODEC_TESTS=ac3_fixed adpcm_adx adpcm_ima_qt adpcm_ima_wav adpcm_ms adpcm_swf adpcm_yam alac aref flac g722 g723_1 g726 mp2 pcm_alaw pcm_f32be pcm_f32le pcm_f64be pcm_f64le pcm_mulaw pcm_s16be pcm_s16le pcm_s24be pcm_s24daud pcm_s24le pcm_s32be pcm_s32le pcm_s8 pcm_u8 wmav1 wmav2
VCODEC_TESTS=amv asv1 asv2 cljr dnxhd_1080i dnxhd_720p dnxhd_720p_10bit dnxhd_720p_rd dv dv50 dv_411 error ffv1 flashsv flashsv2 flv h261 h263 h263p huffyuv jpeg2000 jpegls ljpeg mjpeg mpeg mpeg1b mpeg2 mpeg2_422 mpeg2_idct_int mpeg2_ilace mpeg2_ivlc_qprd mpeg2thread mpeg2thread_ilace mpeg4 mpeg4_adap mpeg4_qpel mpeg4_qprd mpeg4adv mpeg4nr mpeg4thread mpng msmpeg4 msmpeg4v2 msvideo1 prores qtrle qtrlegray rc rgb roq rv10 rv20 snow snowll svq1 v210 vref wmv1 wmv2 yuv zlib zmbv
LAVF_TESTS=aiff alaw asf au avi bmp caf dpx dv_fmt ffm flv_fmt gif gxf jpg mkv mmf mov mpg mulaw mxf mxf_d10 nut ogg pbmpipe pcx pgm pgmpipe pixfmt png ppm ppmpipe rm rso sgi sox swf tga tiff ts voc voc_s16 wav wtv yuv4mpeg
LAVFI_TESTS=crop crop_scale crop_scale_vflip crop_vflip null pixdesc pixfmts_copy pixfmts_crop pixfmts_hflip pixfmts_null pixfmts_pad pixfmts_scale pixfmts_vflip scale200 scale500 vflip vflip_crop vflip_vflip
SEEK_TESTS=seek_ac3_rm seek_adpcm_ima_wav seek_adpcm_ms_wav seek_adpcm_qt_aiff seek_adpcm_swf_flv seek_adpcm_yam_wav seek_alac_m4a seek_asv1_avi seek_asv2_avi seek_dnxhd_1080i_mov seek_dnxhd_720p_dnxhd seek_dnxhd_720p_rd_dnxhd seek_dv411_dv seek_dv50_dv seek_dv_dv seek_error_mpeg4_adv_avi seek_ffv1_avi seek_flac_flac seek_flashsv_flv seek_flv_flv seek_g726_wav seek_h261_avi seek_h263_avi seek_h263p_avi seek_huffyuv_avi seek_image_bmp seek_image_jpg seek_image_pcx seek_image_pgm seek_image_ppm seek_image_sgi seek_image_tga seek_image_tiff seek_jpegls_avi seek_lavf_aif seek_lavf_al seek_lavf_asf seek_lavf_au seek_lavf_avi seek_lavf_dv seek_lavf_ffm seek_lavf_flv seek_lavf_gif seek_lavf_gxf seek_lavf_mkv seek_lavf_mmf seek_lavf_mov seek_lavf_mpg seek_lavf_mxf seek_lavf_mxf_d10 seek_lavf_nut seek_lavf_ogg seek_lavf_rm seek_lavf_swf seek_lavf_ts seek_lavf_ul seek_lavf_voc seek_lavf_wav seek_lavf_wtv seek_lavf_y4m seek_ljpeg_avi seek_mjpeg_avi seek_mp2_mp2 seek_mpeg1_mpg seek_mpeg1b_mpg seek_mpeg2_422_mpg seek_mpeg2_idct_int_mpg seek_mpeg2i_mpg seek_mpeg2ivlc_qprd_mpg seek_mpeg2reuse_mpg seek_mpeg2thread_mpg seek_mpeg2threadivlc_mpg seek_mpeg4_adap_avi seek_mpeg4_adv_avi seek_mpeg4_nr_avi seek_mpeg4_qprd_avi seek_mpeg4_rc_avi seek_mpeg4_thread_avi seek_msmpeg4_avi seek_msmpeg4v2_avi seek_odivx_mp4 seek_pbmpipe_pbm seek_pcm_alaw_wav seek_pcm_f32be_au seek_pcm_f32le_wav seek_pcm_f64be_au seek_pcm_f64le_wav seek_pcm_mulaw_wav seek_pcm_s16be_mov seek_pcm_s16le_wav seek_pcm_s24be_mov seek_pcm_s24daud_302 seek_pcm_s24le_wav seek_pcm_s32be_mov seek_pcm_s32le_wav seek_pcm_s8_mov seek_pcm_u8_wav seek_pgmpipe_pgm seek_ppmpipe_ppm seek_rgb_avi seek_roqav_roq seek_rv10_rm seek_rv20_rm seek_snow53_avi seek_snow_avi seek_svq1_mov seek_wmav1_asf seek_wmav2_asf seek_wmv1_avi seek_wmv2_avi seek_yuv_avi
endif # FFMPEG_CONFIG_MAK
config.h源代码
/**
* FFmpeg config.h
*
* 注释：雷霄骅
* leixiaohua1020@126.com
* http://blog.csdn.net/leixiaohua1020
*
* Configure脚本生成的config.h，包含了各种配置信息。
/
/* Automatically generated by configure - do not modify! */
#ifndef FFMPEG_CONFIG_H
#define FFMPEG_CONFIG_H
#define FFMPEG_CONFIGURATION ""
#define FFMPEG_LICENSE "LGPL version 2.1 or later"
#define FFMPEG_DATADIR "/usr/local/share/ffmpeg"
#define AVCONV_DATADIR "/usr/local/share/ffmpeg"
#define CC_TYPE "gcc"
#define CC_VERSION __VERSION__
#define restrict restrict
#define EXTERN_PREFIX "_"
#define EXTERN_ASM _
#define SLIBSUF ".dll"
#define ARCH_ALPHA 0
#define ARCH_ARM 0
#define ARCH_AVR32 0
#define ARCH_AVR32_AP 0
#define ARCH_AVR32_UC 0
#define ARCH_BFIN 0
#define ARCH_IA64 0
#define ARCH_M68K 0
#define ARCH_MIPS 0
#define ARCH_MIPS64 0
#define ARCH_PARISC 0
#define ARCH_PPC 0
#define ARCH_PPC64 0
#define ARCH_S390 0
#define ARCH_SH4 0
#define ARCH_SPARC 0
#define ARCH_SPARC64 0
#define ARCH_TOMI 0
#define ARCH_X86 1
#define ARCH_X86_32 1
#define ARCH_X86_64 0
#define HAVE_ALTIVEC 0
#define HAVE_AMD3DNOW 1
#define HAVE_AMD3DNOWEXT 1
#define HAVE_ARMV5TE 0
#define HAVE_ARMV6 0
#define HAVE_ARMV6T2 0
#define HAVE_ARMVFP 0
#define HAVE_AVX 1
#define HAVE_IWMMXT 0
#define HAVE_MMI 0
#define HAVE_MMX 1
#define HAVE_MMX2 1
//略……
#define HAVE_YASM 1
#define CONFIG_BSFS 1
#define CONFIG_DECODERS 1
#define CONFIG_DEMUXERS 1
#define CONFIG_ENCODERS 1
#define CONFIG_FILTERS 1
#define CONFIG_HWACCELS 0
#define CONFIG_INDEVS 1
#define CONFIG_MUXERS 1
#define CONFIG_OUTDEVS 1
#define CONFIG_PARSERS 1
#define CONFIG_PROTOCOLS 1
#define CONFIG_FFPLAY 1
#define CONFIG_FFPROBE 1
#define CONFIG_FFSERVER 0
#define CONFIG_FFMPEG 1
#define CONFIG_AVPLAY 0
#define CONFIG_AVPROBE 0
#define CONFIG_AVSERVER 0
#define CONFIG_AANDCT 1
#define CONFIG_AC3DSP 1
#define CONFIG_AVCODEC 1
#define CONFIG_AVDEVICE 1
#define CONFIG_AVFILTER 1
#define CONFIG_AVFORMAT 1
#define CONFIG_AVISYNTH 0
#define CONFIG_BZLIB 0
#define CONFIG_CRYSTALHD 0
#define CONFIG_DCT 1
#define CONFIG_DOC 0
#define CONFIG_DWT 1
#define CONFIG_DXVA2 0
#define CONFIG_FASTDIV 1
#define CONFIG_FFT 1
#define CONFIG_FREI0R 0
#define CONFIG_GNUTLS 0
#define CONFIG_GOLOMB 1
#define CONFIG_GPL 0
#define CONFIG_GRAY 0
#define CONFIG_H264CHROMA 1
#define CONFIG_H264DSP 1
#define CONFIG_H264PRED 1
#define CONFIG_HARDCODED_TABLES 0
#define CONFIG_HUFFMAN 1
#define CONFIG_LIBAACPLUS 0
#define CONFIG_LIBASS 0
#define CONFIG_LIBCDIO 0
#define CONFIG_LIBCELT 0
#define CONFIG_LIBDC1394 0
#define CONFIG_LIBDIRAC 0
#define CONFIG_LIBFAAC 0
#define CONFIG_LIBFREETYPE 0
#define CONFIG_LIBGSM 0
#define CONFIG_LIBMODPLUG 0
#define CONFIG_LIBMP3LAME 0
#define CONFIG_LIBNUT 0
#define CONFIG_LIBOPENCORE_AMRNB 0
#define CONFIG_LIBOPENCORE_AMRWB 0
#define CONFIG_LIBOPENCV 0
#define CONFIG_LIBOPENJPEG 0
#define CONFIG_LIBPULSE 0
#define CONFIG_LIBRTMP 0
#define CONFIG_LIBSCHROEDINGER 0
#define CONFIG_LIBSPEEX 0
#define CONFIG_LIBSTAGEFRIGHT_H264 0
#define CONFIG_LIBTHEORA 0
#define CONFIG_LIBUTVIDEO 0
#define CONFIG_LIBV4L2 0
#define CONFIG_LIBVO_AACENC 0
#define CONFIG_LIBVO_AMRWBENC 0
#define CONFIG_LIBVORBIS 0
#define CONFIG_LIBVPX 0
#define CONFIG_LIBX264 0
//此处省略将近1000条
#define CONFIG_RTMP_PROTOCOL 1
#define CONFIG_RTMPT_PROTOCOL 1
#define CONFIG_RTMPE_PROTOCOL 1
#define CONFIG_RTMPTE_PROTOCOL 1
#define CONFIG_RTMPS_PROTOCOL 1
#define CONFIG_RTP_PROTOCOL 1
#define CONFIG_TCP_PROTOCOL 1
#define CONFIG_TLS_PROTOCOL 0
#define CONFIG_UDP_PROTOCOL 1
#endif /* FFMPEG_CONFIG_H */
Configure的源代码
#!/bin/sh
#
# FFmpeg configure script
#
# Copyright (c) 2000-2002 Fabrice Bellard
# Copyright (c) 2005-2008 Diego Biurrun
# Copyright (c) 2005-2008 Mans Rullgard
#
# 注释：雷霄骅
# leixiaohua1020@126.com
# http://blog.csdn.net/leixiaohua1020
#
# 添加了注释的FFmpeg的Configure文件
#
# Prevent locale nonsense from breaking basic text processing.
LC_ALL=C
export LC_ALL
# make sure we are running under a compatible shell
# try to make this part work with most shells
try_exec(){
echo "Trying shell $1"
type "$1" > /dev/null 2>&1 && exec "$@"
}
unset foo
(: ${foo%%bar}) 2> /dev/null
E1="$?"
(: ${foo?}) 2> /dev/null
E2="$?"
if test "$E1" != 0 || test "$E2" = 0; then
echo "Broken shell detected. Trying alternatives."
export FF_CONF_EXEC
if test "0$FF_CONF_EXEC" -lt 1; then
FF_CONF_EXEC=1
try_exec bash "$0" "$@"
fi
if test "0$FF_CONF_EXEC" -lt 2; then
FF_CONF_EXEC=2
try_exec ksh "$0" "$@"
fi
if test "0$FF_CONF_EXEC" -lt 3; then
FF_CONF_EXEC=3
try_exec /usr/xpg4/bin/sh "$0" "$@"
fi
echo "No compatible shell script interpreter found."
echo "This configure script requires a POSIX-compatible shell"
echo "such as bash or ksh."
echo "THIS IS NOT A BUG IN FFMPEG, DO NOT REPORT IT AS SUCH."
echo "Instead, install a working POSIX-compatible shell."
echo "Disabling this configure test will create a broken FFmpeg."
if test "$BASH_VERSION" = '2.04.0(1)-release'; then
echo "This bash version ($BASH_VERSION) is broken on your platform."
echo "Upgrade to a later version if available."
fi
exit 1
fi
#帮助菜单
show_help(){
cat <> $logfile
}
log_file(){
log BEGIN $1
pr -n -t $1 >> $logfile
log END $1
}
echolog(){
log "$@"
echo "$@"
}
warn(){
log "WARNING: $*"
WARNINGS="${WARNINGS}WARNING: $*n"
}
#出错了
die(){
echolog "$@"
cat <>$f
done
done
}
print_enabled(){
test "$1" = -n && end=" " && shift || end="n"
suf=$1
shift
for v; do
enabled $v && printf "%s$end" ${v%$suf};
done
}
# 添加
# 示例append config_files "config.asm"
append(){
var=$1
shift
# eval命令将会首先扫描命令行进行所有的置换，然后再执行该命令
# 按照上面的示例，置换后为 config_files="$config_files config.asm"
eval "$var="$$var $*""
}
prepend(){
var=$1
shift
eval "$var="$* $$var""
}
add_cppflags(){
append CPPFLAGS $($filter_cppflags "$@")
}
add_cflags(){
append CFLAGS $($filter_cflags "$@")
}
add_cxxflags(){
append CXXFLAGS $($filter_cflags "$@")
}
add_asflags(){
append ASFLAGS $($filter_asflags "$@")
}
add_ldflags(){
append LDFLAGS "$@"
}
add_extralibs(){
prepend extralibs "$@"
}
#2> 代表的是错误输出的重定向
#标准的输入、输出、和错误输出分别表示STDIN STDOUT STDERR 也可以用数字表示 0 1 2
#在这里也就是标准输出STDOUT 和 标准错误输出STDERR 都输入到了$logfile文件
check_cmd(){
log "$@"
"$@" >> $logfile 2>&1
}
#检查CC编译器
check_cc(){
log check_cc "$@"
cat > $TMPC
log_file $TMPC
#很多检查都调用了这个check_cmd
#-c 只编译不链接
check_cmd $cc $CPPFLAGS $CFLAGS "$@" -c -o $TMPO $TMPC
}
check_cxx(){
log check_cxx "$@"
cat > $TMPCPP
log_file $TMPCPP
check_cmd $cxx $CPPFLAGS $CFLAGS $CXXFLAGS "$@" -c -o $TMPO $TMPCPP
}
check_cpp(){
log check_cpp "$@"
cat > $TMPC
log_file $TMPC
#-E选项，可以让编译器在预处理后停止，并输出预处理结果。
check_cmd $cc $CPPFLAGS $CFLAGS "$@" -E -o $TMPO $TMPC
}
check_as(){
log check_as "$@"
cat > $TMPC
log_file $TMPC
check_cmd $as $CPPFLAGS $ASFLAGS "$@" -c -o $TMPO $TMPC
}
check_asm(){
log check_asm "$@"
name="$1"
code="$2"
shift 2
disable $name
check_as "$@" < $TMPS
log_file $TMPS
shift 1
check_cmd $yasmexe $YASMFLAGS "$@" -o $TMPO $TMPS
}
check_ld(){
log check_ld "$@"
type=$1
shift 1
flags=''
libs=''
for f; do
test "${f}" = "${f#-l}" && flags="$flags $f" || libs="$libs $f"
done
check_$type $($filter_cflags $flags) || return
#编译连接
check_cmd $ld $LDFLAGS $flags -o $TMPE $TMPO $libs $extralibs
}
check_cppflags(){
log check_cppflags "$@"
set -- $($filter_cppflags "$@")
check_cc "$@" <
int x;
EOF
}
check_func(){
log check_func "$@"
func=$1
shift
disable $func
check_ld "cc" "$@" <
float foo(float f) { return $func(f); }
int main(void){ return (int) foo; }
EOF
}
check_func_headers(){
log check_func_headers "$@"
headers=$1
funcs=$2
shift 2
{
for hdr in $headers; do
echo "#include <$hdr>"
done
for func in $funcs; do
echo "long check_$func(void) { return (long) $func; }"
done
echo "int main(void) { return 0; }"
} | check_ld "cc" "$@" && enable $funcs && enable_safe $headers
}
check_class_headers_cpp(){
log check_class_headers_cpp "$@"
headers=$1
classes=$2
shift 2
{
for hdr in $headers; do
echo "#include <$hdr>"
done
echo "int main(void) { "
i=1
for class in $classes; do
echo "$class obj$i;"
i=$(expr $i + 1)
done
echo "return 0; }"
} | check_ld "cxx" "$@" && enable $funcs && enable_safe $headers
}
check_cpp_condition(){
log check_cpp_condition "$@"
header=$1
condition=$2
shift 2
check_cpp $($filter_cppflags "$@") <
#if !($condition)
#error "unsatisfied condition: $condition"
#endif
EOF
}
#检查类库
check_lib(){
log check_lib "$@"
header="$1"
func="$2"
shift 2
check_header $header && check_func $func "$@" && add_extralibs "$@"
}
check_lib2(){
log check_lib2 "$@"
headers="$1"
funcs="$2"
shift 2
check_func_headers "$headers" "$funcs" "$@" && add_extralibs "$@"
}
check_lib_cpp(){
log check_lib_cpp "$@"
headers="$1"
classes="$2"
shift 2
check_class_headers_cpp "$headers" "$classes" "$@" && add_extralibs "$@"
}
check_pkg_config(){
log check_pkg_config "$@"
pkg="$1"
headers="$2"
funcs="$3"
shift 3
$pkg_config --exists $pkg 2>/dev/null || return
pkg_cflags=$($pkg_config --cflags $pkg)
pkg_libs=$($pkg_config --libs $pkg)
check_func_headers "$headers" "$funcs" $pkg_cflags $pkg_libs "$@" &&
set_safe ${pkg}_cflags $pkg_cflags &&
set_safe ${pkg}_libs $pkg_libs
}
check_exec(){
check_ld "cc" "$@" && { enabled cross_compile || $TMPE >> $logfile 2>&1; }
}
check_exec_crash(){
code=$(cat)
# exit() is not async signal safe. _Exit (C99) and _exit (POSIX)
# are safe but may not be available everywhere. Thus we use
# raise(SIGTERM) instead. The check is run in a subshell so we
# can redirect the "Terminated" message from the shell. SIGBUS
# is not defined by standard C so it is used conditionally.
(check_exec "$@") >> $logfile 2>&1 <
static void sighandler(int sig){
raise(SIGTERM);
}
int func(void){
$code
}
int main(void){
signal(SIGILL, sighandler);
signal(SIGFPE, sighandler);
signal(SIGSEGV, sighandler);
#ifdef SIGBUS
signal(SIGBUS, sighandler);
#endif
return func();
}
EOF
}
check_type(){
log check_type "$@"
headers=$1
type=$2
shift 2
disable_safe "$type"
incs=""
for hdr in $headers; do
incs="$incs
#include <$hdr>"
done
check_cc "$@" <$member;
EOF
}
#检查依赖项的时候使用
require(){
name="$1"
header="$2"
func="$3"
shift 3
check_lib $header $func "$@" || die "ERROR: $name not found"
}
require2(){
name="$1"
headers="$2"
func="$3"
shift 3
check_lib2 "$headers" $func "$@" || die "ERROR: $name not found"
}
require_cpp(){
name="$1"
headers="$2"
classes="$3"
shift 3
check_lib_cpp "$headers" "$classes" "$@" || die "ERROR: $name not found"
}
require_pkg_config(){
pkg="$1"
check_pkg_config "$@" || die "ERROR: $pkg not found"
add_cflags $(get_safe ${pkg}_cflags)
add_extralibs $(get_safe ${pkg}_libs)
}
check_host_cc(){
log check_host_cc "$@"
cat > $TMPC
log_file $TMPC
check_cmd $host_cc $host_cflags "$@" -c -o $TMPO $TMPC
}
check_host_cflags(){
log check_host_cflags "$@"
check_host_cc "$@" < "$file.tmp" && mv "$file.tmp" "$file" || rm "$file.tmp"
}
#比较两个文件${1}和${2}，如果两个文件发生了变化，则将${1}强制覆盖${2}
#该函数主要用于生成config.h
cp_if_changed(){
#cmp是二进制文件比较命令
#-s：只返回退出值。值0（真）指示相同的文件；值1（假）指示不同的文件；值 2 指示不可访问的文件或缺少选项。
cmp -s "$1" "$2" && echo "$2 is unchanged" && return
mkdir -p "$(dirname $2)"
cp -f "$1" "$2"
}
# CONFIG_LIST contains configurable options, while HAVE_LIST is for
# system-dependent things.
#各种List
COMPONENT_LIST="
bsfs
decoders
demuxers
encoders
filters
hwaccels
indevs
muxers
outdevs
parsers
protocols
"
PROGRAM_LIST="
ffplay
ffprobe
ffserver
ffmpeg
"
CONFIG_LIST="
#组件
$COMPONENT_LIST
#可执行程序
$PROGRAM_LIST
avplay
avprobe
avserver
aandct
ac3dsp
avcodec
avdevice
avfilter
avformat
avisynth
bzlib
crystalhd
dct
doc
dwt
dxva2
fastdiv
fft
frei0r
gnutls
golomb
gpl
gray
h264chroma
h264dsp
h264pred
hardcoded_tables
huffman
libaacplus
libass
libcdio
libcelt
libdc1394
libdirac
libfaac
libfreetype
libgsm
libmodplug
libmp3lame
libnut
libopencore_amrnb
libopencore_amrwb
libopencv
libopenjpeg
libpulse
librtmp
libschroedinger
libspeex
libstagefright_h264
libtheora
libutvideo
libv4l2
libvo_aacenc
libvo_amrwbenc
libvorbis
libvpx
libx264
libxavs
libxvid
lpc
lsp
mdct
memalign_hack
mlib
mpegaudiodsp
network
nonfree
openal
openssl
pic
postproc
rdft
rtpdec
runtime_cpudetect
safe_bitstream_reader
shared
sinewin
small
sram
static
swresample
swscale
swscale_alpha
thumb
vaapi
vda
vdpau
version3
x11grab
zlib
"
THREADS_LIST='
pthreads
w32threads
os2threads
'
ARCH_LIST='
alpha
arm
avr32
avr32_ap
avr32_uc
bfin
ia64
m68k
mips
mips64
parisc
ppc
ppc64
s390
sh4
sparc
sparc64
tomi
x86
x86_32
x86_64
'
ARCH_EXT_LIST='
altivec
amd3dnow
amd3dnowext
armv5te
armv6
armv6t2
armvfp
avx
iwmmxt
mmi
mmx
mmx2
neon
ppc4xx
sse
ssse3
vfpv3
vis
'
HAVE_LIST_PUB='
bigendian
fast_unaligned
'
HAVE_LIST="
$ARCH_EXT_LIST
$HAVE_LIST_PUB
$THREADS_LIST
aligned_stack
alsa_asoundlib_h
altivec_h
arpa_inet_h
asm_mod_y
asm_types_h
attribute_may_alias
attribute_packed
cbrtf
closesocket
cmov
dcbzl
dev_bktr_ioctl_bt848_h
dev_bktr_ioctl_meteor_h
dev_ic_bt8xx_h
dev_video_bktr_ioctl_bt848_h
dev_video_meteor_ioctl_meteor_h
dlfcn_h
dlopen
dos_paths
ebp_available
ebx_available
exp2
exp2f
fast_64bit
fast_clz
fast_cmov
fcntl
fork
getaddrinfo
gethrtime
GetProcessAffinityMask
GetProcessMemoryInfo
GetProcessTimes
getrusage
gnu_as
ibm_asm
inet_aton
inline_asm
isatty
kbhit
ldbrx
llrint
llrintf
local_aligned_16
local_aligned_8
localtime_r
log2
log2f
loongson
lrint
lrintf
lzo1x_999_compress
machine_ioctl_bt848_h
machine_ioctl_meteor_h
makeinfo
malloc_h
MapViewOfFile
memalign
mkstemp
mmap
PeekNamedPipe
poll_h
posix_memalign
round
roundf
sched_getaffinity
sdl
sdl_video_size
setmode
setrlimit
sndio_h
socklen_t
soundcard_h
strerror_r
strptime
struct_addrinfo
struct_ipv6_mreq
struct_rusage_ru_maxrss
struct_sockaddr_in6
struct_sockaddr_sa_len
struct_sockaddr_storage
struct_v4l2_frmivalenum_discrete
symver
symver_asm_label
symver_gnu_asm
sysconf
sysctl
sys_mman_h
sys_param_h
sys_resource_h
sys_select_h
sys_soundcard_h
sys_videoio_h
termios_h
threads
trunc
truncf
vfp_args
VirtualAlloc
winsock2_h
xform_asm
xmm_clobbers
yasm
"
# options emitted with CONFIG_ prefix but not available on command line
CONFIG_EXTRA="
avutil
gplv3
lgplv3
"
CMDLINE_SELECT="
$ARCH_EXT_LIST
$CONFIG_LIST
$THREADS_LIST
asm
coverage
cross_compile
debug
extra_warnings
logging
optimizations
stripping
symver
yasm
"
PATHS_LIST='
bindir
datadir
incdir
libdir
mandir
prefix
shlibdir
'
CMDLINE_SET="
$PATHS_LIST
ar
arch
as
build_suffix
progs_suffix
cc
cpu
cross_prefix
cxx
dep_cc
extra_version
host_cc
host_cflags
host_ldflags
host_libs
host_os
install
ld
logfile
malloc_prefix
nm
optflags
pkg_config
samples
strip
sysinclude
sysroot
target_exec
target_os
target_path
postproc_version
valgrind
yasmexe
"
CMDLINE_APPEND="
extra_cflags
extra_cxxflags
"
# code dependency declarations
# architecture extensions
armv5te_deps="arm"
armv6_deps="arm"
armv6t2_deps="arm"
armvfp_deps="arm"
iwmmxt_deps="arm"
neon_deps="arm"
vfpv3_deps="armvfp"
mmi_deps="mips"
altivec_deps="ppc"
ppc4xx_deps="ppc"
vis_deps="sparc"
x86_64_suggest="cmov fast_cmov"
amd3dnow_deps="mmx"
amd3dnowext_deps="amd3dnow"
mmx_deps="x86"
mmx2_deps="mmx"
sse_deps="mmx"
ssse3_deps="sse"
avx_deps="ssse3"
aligned_stack_if_any="ppc x86"
fast_64bit_if_any="alpha ia64 mips64 parisc64 ppc64 sparc64 x86_64"
fast_clz_if_any="alpha armv5te avr32 mips ppc x86"
fast_unaligned_if_any="armv6 ppc x86"
inline_asm_deps="!tms470"
need_memalign="altivec neon sse"
symver_if_any="symver_asm_label symver_gnu_asm"
# subsystems
dct_select="rdft"
mdct_select="fft"
rdft_select="fft"
mpegaudiodsp_select="dct"
# decoders / encoders / hardware accelerators
aac_decoder_select="mdct sinewin"
aac_encoder_select="mdct sinewin"
aac_latm_decoder_select="aac_decoder aac_latm_parser"
ac3_decoder_select="mdct ac3dsp ac3_parser"
ac3_encoder_select="mdct ac3dsp"
ac3_fixed_encoder_select="mdct ac3dsp"
alac_encoder_select="lpc"
amrnb_decoder_select="lsp"
amrwb_decoder_select="lsp"
atrac1_decoder_select="mdct sinewin"
atrac3_decoder_select="mdct"
binkaudio_dct_decoder_select="mdct rdft dct sinewin"
binkaudio_rdft_decoder_select="mdct rdft sinewin"
cavs_decoder_select="golomb"
cook_decoder_select="mdct sinewin"
cscd_decoder_suggest="zlib"
dca_decoder_select="mdct"
dnxhd_encoder_select="aandct"
dxa_decoder_select="zlib"
eac3_decoder_select="ac3_decoder"
eac3_encoder_select="mdct ac3dsp"
eamad_decoder_select="aandct"
eatgq_decoder_select="aandct"
eatqi_decoder_select="aandct"
ffv1_decoder_select="golomb"
flac_decoder_select="golomb"
flac_encoder_select="golomb lpc"
flashsv_decoder_select="zlib"
flashsv_encoder_select="zlib"
flashsv2_encoder_select="zlib"
flashsv2_decoder_select="zlib"
flv_decoder_select="h263_decoder"
flv_encoder_select="h263_encoder"
fraps_decoder_select="huffman"
h261_encoder_select="aandct"
h263_decoder_select="h263_parser"
h263_encoder_select="aandct"
h263_vaapi_hwaccel_select="vaapi h263_decoder"
h263i_decoder_select="h263_decoder"
h263p_encoder_select="h263_encoder"
h264_crystalhd_decoder_select="crystalhd h264_mp4toannexb_bsf h264_parser"
h264_decoder_select="golomb h264chroma h264dsp h264pred"
h264_dxva2_hwaccel_deps="dxva2api_h"
h264_dxva2_hwaccel_select="dxva2 h264_decoder"
h264_vaapi_hwaccel_select="vaapi h264_decoder"
h264_vda_hwaccel_deps="VideoDecodeAcceleration_VDADecoder_h pthreads"
h264_vda_hwaccel_select="vda h264_decoder"
h264_vdpau_decoder_select="vdpau h264_decoder"
imc_decoder_select="fft mdct sinewin"
jpegls_decoder_select="golomb"
jpegls_encoder_select="golomb"
ljpeg_encoder_select="aandct"
loco_decoder_select="golomb"
mjpeg_encoder_select="aandct"
mlp_decoder_select="mlp_parser"
mp1_decoder_select="mpegaudiodsp"
mp1float_decoder_select="mpegaudiodsp"
mp2_decoder_select="mpegaudiodsp"
mp2float_decoder_select="mpegaudiodsp"
mp3_decoder_select="mpegaudiodsp"
mp3adu_decoder_select="mpegaudiodsp"
mp3adufloat_decoder_select="mpegaudiodsp"
mp3float_decoder_select="mpegaudiodsp"
mp3on4_decoder_select="mpegaudiodsp"
mp3on4float_decoder_select="mpegaudiodsp"
mpc7_decoder_select="mpegaudiodsp"
mpc8_decoder_select="mpegaudiodsp"
mpeg_vdpau_decoder_select="vdpau mpegvideo_decoder"
mpeg_xvmc_decoder_deps="X11_extensions_XvMClib_h"
mpeg_xvmc_decoder_select="mpegvideo_decoder"
mpeg1_vdpau_decoder_select="vdpau mpeg1video_decoder"
mpeg1_vdpau_hwaccel_select="vdpau mpeg1video_decoder"
mpeg1video_encoder_select="aandct"
mpeg2_crystalhd_decoder_select="crystalhd"
mpeg2_dxva2_hwaccel_deps="dxva2api_h"
mpeg2_dxva2_hwaccel_select="dxva2 mpeg2video_decoder"
mpeg2_vdpau_hwaccel_select="vdpau mpeg2video_decoder"
mpeg2_vaapi_hwaccel_select="vaapi mpeg2video_decoder"
mpeg2video_encoder_select="aandct"
mpeg4_crystalhd_decoder_select="crystalhd"
mpeg4_decoder_select="h263_decoder mpeg4video_parser"
mpeg4_encoder_select="h263_encoder"
mpeg4_vaapi_hwaccel_select="vaapi mpeg4_decoder"
mpeg4_vdpau_decoder_select="vdpau mpeg4_decoder"
msmpeg4_crystalhd_decoder_select="crystalhd"
msmpeg4v1_decoder_select="h263_decoder"
msmpeg4v1_encoder_select="h263_encoder"
msmpeg4v2_decoder_select="h263_decoder"
msmpeg4v2_encoder_select="h263_encoder"
msmpeg4v3_decoder_select="h263_decoder"
msmpeg4v3_encoder_select="h263_encoder"
nellymoser_decoder_select="mdct sinewin"
nellymoser_encoder_select="mdct sinewin"
png_decoder_select="zlib"
png_encoder_select="zlib"
qcelp_decoder_select="lsp"
qdm2_decoder_select="mdct rdft mpegaudiodsp"
ra_144_encoder_select="lpc"
rv10_decoder_select="h263_decoder"
rv10_encoder_select="h263_encoder"
rv20_decoder_select="h263_decoder"
rv20_encoder_select="h263_encoder"
rv30_decoder_select="golomb h264chroma h264pred"
rv40_decoder_select="golomb h264chroma h264pred"
shorten_decoder_select="golomb"
sipr_decoder_select="lsp"
snow_decoder_select="dwt"
snow_encoder_select="aandct dwt"
sonic_decoder_select="golomb"
sonic_encoder_select="golomb"
sonic_ls_encoder_select="golomb"
svq1_encoder_select="aandct"
svq3_decoder_select="golomb h264chroma h264dsp h264pred"
svq3_decoder_suggest="zlib"
theora_decoder_select="vp3_decoder"
tiff_decoder_suggest="zlib"
tiff_encoder_suggest="zlib"
truehd_decoder_select="mlp_decoder"
tscc_decoder_select="zlib"
twinvq_decoder_select="mdct lsp sinewin"
vc1_crystalhd_decoder_select="crystalhd"
vc1_decoder_select="h263_decoder h264chroma"
vc1_dxva2_hwaccel_deps="dxva2api_h"
vc1_dxva2_hwaccel_select="dxva2 vc1_decoder"
vc1_vaapi_hwaccel_select="vaapi vc1_decoder"
vc1_vdpau_decoder_select="vdpau vc1_decoder"
vc1image_decoder_select="vc1_decoder"
vorbis_decoder_select="mdct"
vorbis_encoder_select="mdct"
vp6_decoder_select="huffman"
vp6a_decoder_select="vp6_decoder"
vp6f_decoder_select="vp6_decoder"
vp8_decoder_select="h264pred"
wmapro_decoder_select="mdct sinewin"
wmav1_decoder_select="mdct sinewin"
wmav1_encoder_select="mdct sinewin"
wmav2_decoder_select="mdct sinewin"
wmav2_encoder_select="mdct sinewin"
wmavoice_decoder_select="lsp rdft dct mdct sinewin"
wmv1_decoder_select="h263_decoder"
wmv1_encoder_select="h263_encoder"
wmv2_decoder_select="h263_decoder"
wmv2_encoder_select="h263_encoder"
wmv3_decoder_select="vc1_decoder"
wmv3_crystalhd_decoder_select="crystalhd"
wmv3_dxva2_hwaccel_select="vc1_dxva2_hwaccel"
wmv3_vaapi_hwaccel_select="vc1_vaapi_hwaccel"
wmv3_vdpau_decoder_select="vc1_vdpau_decoder"
wmv3image_decoder_select="wmv3_decoder"
zlib_decoder_select="zlib"
zlib_encoder_select="zlib"
zmbv_decoder_select="zlib"
zmbv_encoder_select="zlib"
crystalhd_deps="libcrystalhd_libcrystalhd_if_h"
vaapi_deps="va_va_h"
vda_deps="VideoDecodeAcceleration_VDADecoder_h pthreads"
vdpau_deps="vdpau_vdpau_h vdpau_vdpau_x11_h"
# parsers
h264_parser_select="golomb h264chroma h264dsp h264pred"
# external libraries
libaacplus_encoder_deps="libaacplus"
libcelt_decoder_deps="libcelt"
libdirac_decoder_deps="libdirac !libschroedinger"
libdirac_encoder_deps="libdirac"
libfaac_encoder_deps="libfaac"
libgsm_decoder_deps="libgsm"
libgsm_encoder_deps="libgsm"
libgsm_ms_decoder_deps="libgsm"
libgsm_ms_encoder_deps="libgsm"
libmodplug_demuxer_deps="libmodplug"
libmp3lame_encoder_deps="libmp3lame"
libopencore_amrnb_decoder_deps="libopencore_amrnb"
libopencore_amrnb_encoder_deps="libopencore_amrnb"
libopencore_amrwb_decoder_deps="libopencore_amrwb"
libopenjpeg_decoder_deps="libopenjpeg"
libopenjpeg_encoder_deps="libopenjpeg"
libschroedinger_decoder_deps="libschroedinger"
libschroedinger_encoder_deps="libschroedinger"
libspeex_decoder_deps="libspeex"
libspeex_encoder_deps="libspeex"
libstagefright_h264_decoder_deps="libstagefright_h264"
libtheora_encoder_deps="libtheora"
libvo_aacenc_encoder_deps="libvo_aacenc"
libvo_amrwbenc_encoder_deps="libvo_amrwbenc"
libvorbis_encoder_deps="libvorbis"
libvpx_decoder_deps="libvpx"
libvpx_encoder_deps="libvpx"
libx264_encoder_deps="libx264"
libx264rgb_encoder_deps="libx264"
libxavs_encoder_deps="libxavs"
libxvid_encoder_deps="libxvid"
libutvideo_decoder_deps="libutvideo gpl"
# demuxers / muxers
ac3_demuxer_select="ac3_parser"
asf_stream_muxer_select="asf_muxer"
avisynth_demuxer_deps="avisynth"
dirac_demuxer_select="dirac_parser"
eac3_demuxer_select="ac3_parser"
flac_demuxer_select="flac_parser"
ipod_muxer_select="mov_muxer"
libnut_demuxer_deps="libnut"
libnut_muxer_deps="libnut"
matroska_audio_muxer_select="matroska_muxer"
matroska_demuxer_suggest="zlib bzlib"
mov_demuxer_suggest="zlib"
mp3_demuxer_select="mpegaudio_parser"
mp4_muxer_select="mov_muxer"
mpegtsraw_demuxer_select="mpegts_demuxer"
mxf_d10_muxer_select="mxf_muxer"
ogg_demuxer_select="golomb"
psp_muxer_select="mov_muxer"
rtp_demuxer_select="sdp_demuxer"
rtpdec_select="asf_demuxer rm_demuxer rtp_protocol mpegts_demuxer mov_demuxer"
rtsp_demuxer_select="http_protocol rtpdec"
rtsp_muxer_select="rtp_muxer http_protocol rtp_protocol"
sap_demuxer_select="sdp_demuxer"
sap_muxer_select="rtp_muxer rtp_protocol"
sdp_demuxer_select="rtpdec"
spdif_muxer_select="aac_parser"
tg2_muxer_select="mov_muxer"
tgp_muxer_select="mov_muxer"
w64_demuxer_deps="wav_demuxer"
# indevs / outdevs
alsa_indev_deps="alsa_asoundlib_h snd_pcm_htimestamp"
alsa_outdev_deps="alsa_asoundlib_h"
bktr_indev_deps_any="dev_bktr_ioctl_bt848_h machine_ioctl_bt848_h dev_video_bktr_ioctl_bt848_h dev_ic_bt8xx_h"
dshow_indev_deps="IBaseFilter"
dshow_indev_extralibs="-lpsapi -lole32 -lstrmiids -luuid"
dv1394_indev_deps="dv1394 dv_demuxer"
fbdev_indev_deps="linux_fb_h"
jack_indev_deps="jack_jack_h sem_timedwait"
lavfi_indev_deps="avfilter"
libcdio_indev_deps="libcdio"
libdc1394_indev_deps="libdc1394"
libv4l2_indev_deps="libv4l2"
openal_indev_deps="openal"
oss_indev_deps_any="soundcard_h sys_soundcard_h"
oss_outdev_deps_any="soundcard_h sys_soundcard_h"
pulse_indev_deps="libpulse"
sdl_outdev_deps="sdl"
sndio_indev_deps="sndio_h"
sndio_outdev_deps="sndio_h"
v4l_indev_deps="linux_videodev_h"
v4l2_indev_deps_any="linux_videodev2_h sys_videoio_h"
vfwcap_indev_deps="capCreateCaptureWindow vfwcap_defines"
vfwcap_indev_extralibs="-lavicap32"
x11_grab_device_indev_deps="x11grab XShmCreateImage"
x11_grab_device_indev_extralibs="-lX11 -lXext -lXfixes"
# protocols
gopher_protocol_deps="network"
httpproxy_protocol_deps="network"
httpproxy_protocol_select="tcp_protocol"
http_protocol_deps="network"
http_protocol_select="tcp_protocol"
https_protocol_select="tls_protocol"
mmsh_protocol_select="http_protocol"
mmst_protocol_deps="network"
rtmp_protocol_select="tcp_protocol"
rtp_protocol_select="udp_protocol"
tcp_protocol_deps="network"
tls_protocol_deps_any="openssl gnutls"
tls_protocol_select="tcp_protocol"
udp_protocol_deps="network"
# filters
amovie_filter_deps="avcodec avformat"
ass_filter_deps="libass"
blackframe_filter_deps="gpl"
boxblur_filter_deps="gpl"
cropdetect_filter_deps="gpl"
delogo_filter_deps="gpl"
drawtext_filter_deps="libfreetype"
frei0r_filter_deps="frei0r dlopen"
frei0r_src_filter_deps="frei0r dlopen"
hqdn3d_filter_deps="gpl"
movie_filter_deps="avcodec avformat"
mp_filter_deps="gpl avcodec"
mptestsrc_filter_deps="gpl"
negate_filter_deps="lut_filter"
ocv_filter_deps="libopencv"
pan_filter_deps="swresample"
scale_filter_deps="swscale"
tinterlace_filter_deps="gpl"
yadif_filter_deps="gpl"
# libraries
avdevice_deps="avcodec avformat"
avformat_deps="avcodec"
postproc_deps="gpl"
# programs
ffplay_deps="avcodec avformat swscale sdl"
ffplay_select="buffersink_filter rdft"
ffprobe_deps="avcodec avformat"
ffserver_deps="avformat ffm_muxer fork rtp_protocol rtsp_demuxer"
ffserver_extralibs='$ldl'
ffmpeg_deps="avcodec avformat swscale swresample"
ffmpeg_select="buffersink_filter"
doc_deps="texi2html"
# tests
test_deps(){
suf1=$1
suf2=$2
shift 2
for v; do
dep=${v%=*}
tests=${v#*=}
for name in ${tests}; do
append ${name}_test_deps ${dep}$suf1 ${dep}$suf2
done
done
}
mxf_d10_test_deps="avfilter"
seek_lavf_mxf_d10_test_deps="mxf_d10_test"
test_deps _encoder _decoder
adpcm_ima_qt
adpcm_ima_wav
adpcm_ms
adpcm_swf
adpcm_yamaha=adpcm_yam
alac
asv1
asv2
bmp
dnxhd="dnxhd_1080i dnxhd_720p dnxhd_720p_rd"
dvvideo="dv dv_411 dv50"
ffv1
flac
flashsv
flv
adpcm_g726=g726
gif
h261
h263="h263 h263p"
huffyuv
jpegls
mjpeg="jpg mjpeg ljpeg"
mp2
mpeg1video="mpeg mpeg1b"
mpeg2video="mpeg2 mpeg2_422 mpeg2_idct_int mpeg2_ilace mpeg2_ivlc_qprd"
mpeg2video="mpeg2thread mpeg2thread_ilace"
mpeg4="mpeg4 mpeg4_adap mpeg4_qpel mpeg4_qprd mpeg4adv mpeg4nr"
mpeg4="mpeg4thread error rc"
msmpeg4v3=msmpeg4
msmpeg4v2
pbm=pbmpipe
pcx
pgm="pgm pgmpipe"
png
ppm="ppm ppmpipe"
rawvideo="rgb yuv"
roq
rv10
rv20
sgi
snow="snow snowll"
svq1
targa=tga
tiff
wmav1
wmav2
wmv1
wmv2
test_deps _muxer _demuxer
aiff
pcm_alaw=alaw
asf
au
avi
dv=dv_fmt
ffm
flv=flv_fmt
gxf
matroska=mkv
mmf
mov
pcm_mulaw=mulaw
mxf="mxf mxf_d10"
nut
ogg
rawvideo=pixfmt
rm
swf
mpegts=ts
voc
wav
yuv4mpegpipe=yuv4mpeg
ac3_fixed_test_deps="ac3_fixed_encoder ac3_decoder rm_muxer rm_demuxer"
mpg_test_deps="mpeg1system_muxer mpegps_demuxer"
# 默认参数 default parameters
# 日志
logfile="config.log"
# 安装路径 installation paths
prefix_default="/usr/local"
bindir_default='${prefix}/bin'
datadir_default='${prefix}/share/ffmpeg'
incdir_default='${prefix}/include'
libdir_default='${prefix}/lib'
mandir_default='${prefix}/share/man'
shlibdir_default="$libdir_default"
postproc_version_default="current"
# 工具链 toolchain
ar_default="ar"
cc_default="gcc"
cxx_default="g++"
cc_version="unknown"
host_cc_default="gcc"
install="install"
ln_s="ln -sf"
nm_default="nm"
objformat="elf"
pkg_config_default=pkg-config
ranlib="ranlib"
strip_default="strip"
yasmexe_default="yasm"
nm_opts='-g'
nogas=":"
# 机器 machine
arch_default=$(uname -m)
cpu="generic"
# 操作系统 OS
target_os_default=$(tolower $(uname -s))
host_os=$target_os_default
# alternative libpostproc version
ALT_PP_VER_MAJOR=51
ALT_PP_VER_MINOR=2
ALT_PP_VER_MICRO=101
ALT_PP_VER=$ALT_PP_VER_MAJOR.$ALT_PP_VER_MINOR.$ALT_PP_VER_MICRO
# 选项 configurable options
# PROGRAM_LIST内容是 ffplay ffprobe ffserver ffmpeg
enable $PROGRAM_LIST
enable avcodec
enable avdevice
enable avfilter
enable avformat
enable avutil
enable postproc
enable stripping
enable swresample
enable swscale
enable asm
enable debug
enable doc
enable fastdiv
enable network
enable optimizations
enable safe_bitstream_reader
enable static
enable swscale_alpha
# 编译选项 build settings
SHFLAGS='-shared -Wl,-soname,$$(@F)'
FFSERVERLDFLAGS=-Wl,-E
# 前缀后缀
LIBPREF="lib"
LIBSUF=".a"
FULLNAME='$(NAME)$(BUILDSUF)'
# 名称
LIBNAME='$(LIBPREF)$(FULLNAME)$(LIBSUF)'
# 动态库前缀后缀
SLIBPREF="lib"
SLIBSUF=".so"
# 名称
SLIBNAME='$(SLIBPREF)$(FULLNAME)$(SLIBSUF)'
SLIBNAME_WITH_VERSION='$(SLIBNAME).$(LIBVERSION)'
SLIBNAME_WITH_MAJOR='$(SLIBNAME).$(LIBMAJOR)'
LIB_INSTALL_EXTRA_CMD='$$(RANLIB) "$(LIBDIR)/$(LIBNAME)"'
SLIB_INSTALL_NAME='$(SLIBNAME_WITH_VERSION)'
SLIB_INSTALL_LINKS='$(SLIBNAME_WITH_MAJOR) $(SLIBNAME)'
AS_O='-o $@'
CC_O='-o $@'
CXX_O='-o $@'
host_cflags='-D_ISOC99_SOURCE -O3 -g'
host_libs='-lm'
target_path='$(CURDIR)'
# since the object filename is not given with the -MM flag, the compiler
# is only able to print the basename, and we must add the path ourselves
DEPEND_CMD='$(DEPCC) $(DEPFLAGS) $< | sed -e "/^#.*/d" -e "s,^[[:space:]]*$(*F)\.o,$(@D)/$(*F).o," > $(@:.o=.d)'
DEPFLAGS='$(CPPFLAGS) $(CFLAGS) -MM'
# find source path
# $0就是该bash文件名
# dirname /home/lxh/test.txt 输出/home/lxh
if test -f configure; then
source_path=.
else
source_path=$(cd $(dirname "$0"); pwd)
echo "$source_path" | grep -q '[[:blank:]]' &&
die "Out of tree builds are impossible with whitespace in source path."
test -e "$source_path/config.h" &&
die "Out of tree builds are impossible with config.h in source dir."
fi
# 脚本名称叫test.sh
# 入参三个: 1 2 3
# 运行test.sh 1 2 3后
# $*为"1 2 3"（一起被引号包住）
# $@为"1" "2" "3"（分别被包住）
# $#为3（参数数量）
for v in "$@"; do
r=${v#*=}
l=${v%"$r"}
r=$(sh_quote "$r")
FFMPEG_CONFIGURATION="${FFMPEG_CONFIGURATION# } ${l}${r}"
done
# ${数字} 一般是位置参数的用法。
# 如果运行脚本的时候带参数，那么可以在脚本里通过 $1 获取第一个参数，$2 获取第二个参数
# 例如以ENCODER_LIST为例，$1为"encoder"，$2为"ENC"，$3为"libavcodec/allcodecs.c"
find_things(){
thing=$1
pattern=$2
file=$source_path/$3
# 处理一行字符串？挺复杂
sed -n "s/^[^#]*$pattern.*([^,]*, *([^,]*)(,.*)*).*/1_$thing/p" "$file"
}
#从allcodecs.c等文件中提取编解码器
ENCODER_LIST=$(find_things encoder ENC libavcodec/allcodecs.c)
DECODER_LIST=$(find_things decoder DEC libavcodec/allcodecs.c)
HWACCEL_LIST=$(find_things hwaccel HWACCEL libavcodec/allcodecs.c)
PARSER_LIST=$(find_things parser PARSER libavcodec/allcodecs.c)
BSF_LIST=$(find_things bsf BSF libavcodec/allcodecs.c)
MUXER_LIST=$(find_things muxer _MUX libavformat/allformats.c)
DEMUXER_LIST=$(find_things demuxer DEMUX libavformat/allformats.c)
OUTDEV_LIST=$(find_things outdev OUTDEV libavdevice/alldevices.c)
INDEV_LIST=$(find_things indev _IN libavdevice/alldevices.c)
PROTOCOL_LIST=$(find_things protocol PROTOCOL libavformat/allformats.c)
FILTER_LIST=$(find_things filter FILTER libavfilter/allfilters.c)
# 所有组件
ALL_COMPONENTS="
$BSF_LIST
$DECODER_LIST
$DEMUXER_LIST
$ENCODER_LIST
$FILTER_LIST
$HWACCEL_LIST
$INDEV_LIST
$MUXER_LIST
$OUTDEV_LIST
$PARSER_LIST
$PROTOCOL_LIST
"
find_tests(){
map "echo ${2}${v}_test" $(ls "$source_path"/tests/ref/$1 | grep -v '[^-a-z0-9_]')
}
ACODEC_TESTS=$(find_tests acodec)
VCODEC_TESTS=$(find_tests vsynth1)
LAVF_TESTS=$(find_tests lavf)
LAVFI_TESTS=$(find_tests lavfi)
SEEK_TESTS=$(find_tests seek seek_)
ALL_TESTS="$ACODEC_TESTS $VCODEC_TESTS $LAVF_TESTS $LAVFI_TESTS $SEEK_TESTS"
pcm_test_deps=$(map 'echo ${v%_*}_decoder $v' $(filter pcm_* $ENCODER_LIST))
for n in $COMPONENT_LIST; do
v=$(toupper ${n%s})_LIST
eval enable $$v
eval ${n}_if_any="$$v"
done
enable $ARCH_EXT_LIST $ALL_TESTS
die_unknown(){
echo "Unknown option "$1"."
echo "See $0 --help for available options."
exit 1
}
show_list() {
suffix=_$1
shift
echo $* | sed s/$suffix//g | tr ' ' 'n' | sort | pr -3 -t
exit 0
}
# 解析各种各样的选项
#
# case分支语句的格式如下：
# case $变量名 in
# 模式1）
# 命令序列1
# ;;
# 模式2）
# 命令序列2
# ;;
# *）
# 默认执行的命令序列
# ;;
# esac
# case语句结构特点如下：
# case行尾必须为单词“in”，每一个模式必须以右括号“）”结束。
# 双分号“;;”表示命令序列结束。
# 最后的“*）”表示默认模式，当使用前面的各种模式均无法匹配该变量时，将执行“*）”后的命令序列。
#
#注意：opt不是参数列表（实际上也没有看见opt变量的定义）
#原因是处在for循环中，当你没有为in指定列表时，for会默认取命令行参数列表。
#因此“opt”这个名字实际上是可以随便取的
for opt do
# "#"用于去除特定字符前面的字符串
# optval内容为opt去掉"="以及其前面字符串之后的内容
optval="${opt#*=}"
case "$opt" in
# 不同的选项
--extra-ldflags=*) add_ldflags $optval
;;
--extra-libs=*) add_extralibs $optval
;;
--disable-devices) disable $INDEV_LIST $OUTDEV_LIST
;;
--enable-debug=*) debuglevel="$optval"
;;
--disable-everything)
map 'eval unset ${$(toupper ${v%s})_LIST}' $COMPONENT_LIST
;;
--enable-*=*|--disable-*=*)
eval $(echo "${opt%%=*}" | sed 's/--/action=/;s/-/ thing=/')
is_in "${thing}s" $COMPONENT_LIST || die_unknown "$opt"
eval list=$$(toupper $thing)_LIST
name=$(echo "${optval}" | sed "s/,/_${thing}|/g")_${thing}
$action $(filter "$name" $list)
;;
--enable-?*|--disable-?*)
eval $(echo "$opt" | sed 's/--/action=/;s/-/ option=/;s/-/_/g')
if is_in $option $COMPONENT_LIST; then
test $action = disable && action=unset
eval $action $$(toupper ${option%s})_LIST
elif is_in $option $CMDLINE_SELECT; then
$action $option
else
die_unknown $opt
fi
;;
--list-*)
NAME="${opt#--list-}"
is_in $NAME $COMPONENT_LIST || die_unknown $opt
NAME=${NAME%s}
eval show_list $NAME $$(toupper $NAME)_LIST
;;
--help|-h) show_help
;;
*)
#% 就是从右边开始删除符合条件的字符串（符合条件的最短字符串）
#%%是删除符合条件的最长的字符串
#删除“=”右边的内容
optname="${opt%%=*}"
#删除左边的“--”
optname="${optname#--}"
optname=$(echo "$optname" | sed 's/-/_/g')
#看看是否在opt列表中，不在的话就会返回错误
if is_in $optname $CMDLINE_SET; then
eval $optname='$optval'
elif is_in $optname $CMDLINE_APPEND; then
append $optname "$optval"
else
die_unknown $opt
fi
;;
esac
done
disabled logging && logfile=/dev/null
echo "# $0 $FFMPEG_CONFIGURATION" > $logfile
set >> $logfile
test -n "$cross_prefix" && enable cross_compile
if enabled cross_compile; then
test -n "$arch" && test -n "$target_os" ||
die "Must specify target arch and OS when cross-compiling"
fi
set_default arch target_os postproc_version
# Check if we should build alternative libpostproc version instead of current
if test "$postproc_version" = $ALT_PP_VER; then
LIBPOSTPROC_VERSION=$ALT_PP_VER
LIBPOSTPROC_VERSION_MAJOR=$ALT_PP_VER_MAJOR
LIBPOSTPROC_VERSION_MINOR=$ALT_PP_VER_MINOR
LIBPOSTPROC_VERSION_MICRO=$ALT_PP_VER_MICRO
elif test "$postproc_version" != current; then
die "Invalid argument to --postproc-version. See --help output."
fi
ar_default="${cross_prefix}${ar_default}"
cc_default="${cross_prefix}${cc_default}"
cxx_default="${cross_prefix}${cxx_default}"
nm_default="${cross_prefix}${nm_default}"
pkg_config_default="${cross_prefix}${pkg_config_default}"
ranlib="${cross_prefix}${ranlib}"
strip_default="${cross_prefix}${strip_default}"
sysinclude_default="${sysroot}/usr/include"
set_default cc cxx nm pkg_config strip sysinclude yasmexe
enabled cross_compile || host_cc_default=$cc
set_default host_cc
if ! $pkg_config --version >/dev/null 2>&1; then
warn "$pkg_config not found, library detection may fail."
pkg_config=false
fi
exesuf() {
case $1 in
mingw32*|cygwin*|*-dos|freedos|opendos|os/2*|symbian) echo .exe ;;
esac
}
EXESUF=$(exesuf $target_os)
HOSTEXESUF=$(exesuf $host_os)
# set temporary file name
: ${TMPDIR:=$TEMPDIR}
: ${TMPDIR:=$TMP}
: ${TMPDIR:=/tmp}
if ! check_cmd mktemp -u XXXXXX; then
# simple replacement for missing mktemp
# NOT SAFE FOR GENERAL USE
mktemp(){
echo "${2%%XXX*}.${HOSTNAME}.${UID}.$$"
}
fi
#生成临时文件
#${2}为该文件的后缀
tmpfile(){
tmp=$(mktemp -u "${TMPDIR}/ffconf.XXXXXXXX")$2 &&
(set -C; exec > $tmp) 2>/dev/null ||
die "Unable to create temporary file in $TMPDIR."
append TMPFILES $tmp
eval $1=$tmp
}
trap 'rm -f -- $TMPFILES' EXIT
#各种临时文件
tmpfile TMPASM .asm
tmpfile TMPC .c
tmpfile TMPCPP .cpp
tmpfile TMPE $EXESUF
tmpfile TMPH .h
tmpfile TMPO .o
tmpfile TMPS .S
tmpfile TMPSH .sh
tmpfile TMPV .ver
unset -f mktemp
chmod +x $TMPE
# make sure we can execute files in $TMPDIR
cat > $TMPSH 2>> $logfile <> $logfile 2>&1
if ! $TMPSH >> $logfile 2>&1; then
cat <&1 | grep -q '^gcc.*LLVM'; then
cc_type=llvm_gcc
cc_version=__VERSION__
gcc_extra_ver=$(expr "$($cc --version | head -n1)" : '.*((.*))')
cc_ident="llvm-gcc $($cc -dumpversion) $gcc_extra_ver"
CC_DEPFLAGS='-MMD -MF $(@:.o=.d) -MT $@'
AS_DEPFLAGS='-MMD -MF $(@:.o=.d) -MT $@'
speed_cflags='-O3'
size_cflags='-Os'
elif $cc -v 2>&1 | grep -qi ^gcc; then
cc_type=gcc
cc_version=__VERSION__
gcc_version=$($cc --version | head -n1)
gcc_basever=$($cc -dumpversion)
gcc_pkg_ver=$(expr "$gcc_version" : '[^ ]* (([^)]*))')
gcc_ext_ver=$(expr "$gcc_version" : ".*$gcc_pkg_ver $gcc_basever \(.*\)")
cc_ident=$(cleanws "gcc $gcc_basever $gcc_pkg_ver $gcc_ext_ver")
if ! $cc -dumpversion | grep -q '^2.'; then
CC_DEPFLAGS='-MMD -MF $(@:.o=.d) -MT $@'
AS_DEPFLAGS='-MMD -MF $(@:.o=.d) -MT $@'
fi
speed_cflags='-O3'
size_cflags='-Os'
elif $cc --version 2>/dev/null | grep -q Intel; then
cc_type=icc
cc_version="AV_STRINGIFY(__INTEL_COMPILER)"
cc_ident=$($cc --version | head -n1)
icc_version=$($cc -dumpversion)
CC_DEPFLAGS='-MMD'
AS_DEPFLAGS='-MMD'
speed_cflags='-O3'
size_cflags='-Os'
noopt_cflags='-O1'
elif $cc -v 2>&1 | grep -q xlc; then
cc_type=xlc
cc_version="AV_STRINGIFY(__IBMC__)"
cc_ident=$($cc -qversion 2>/dev/null | head -n1)
speed_cflags='-O5'
size_cflags='-O5 -qcompact'
elif $cc -V 2>/dev/null | grep -q Compaq; then
cc_type=ccc
cc_version="AV_STRINGIFY(__DECC_VER)"
cc_ident=$($cc -V | head -n1 | cut -d' ' -f1-3)
DEPFLAGS='$(CPPFLAGS) $(CFLAGS) -M'
debuglevel=3
add_ldflags -Wl,-z,now # calls to libots crash without this
speed_cflags='-fast'
size_cflags='-O1'
elif $cc --vsn 2>/dev/null | grep -q "ARM C/C++ Compiler"; then
test -d "$sysroot" || die "No valid sysroot specified."
cc_type=armcc
cc_version="AV_STRINGIFY(__ARMCC_VERSION)"
cc_ident=$($cc --vsn | head -n1)
armcc_conf="$PWD/armcc.conf"
$cc --arm_linux_configure
--arm_linux_config_file="$armcc_conf"
--configure_sysroot="$sysroot"
--configure_cpp_headers="$sysinclude" >>$logfile 2>&1 ||
die "Error creating armcc configuration file."
$cc --vsn | grep -q RVCT && armcc_opt=rvct || armcc_opt=armcc
cc="$cc --arm_linux_config_file=$armcc_conf --translate_gcc"
as_default="${cross_prefix}gcc"
CC_DEPFLAGS='-MMD'
AS_DEPFLAGS='-MMD'
speed_cflags='-O3'
size_cflags='-Os'
filter_asflags="filter_out -W${armcc_opt}*"
elif $cc -version 2>/dev/null | grep -q TMS470; then
cc_type=tms470
cc_version="AV_STRINGIFY(__TI_COMPILER_VERSION__)"
cc_ident=$($cc -version | head -n1 | tr -s ' ')
cc="$cc --gcc --abi=eabi -eo=.o -mc -me"
CC_O='-fr=$(@D)'
as_default="${cross_prefix}gcc"
ld_default="${cross_prefix}gcc"
TMPO=$(basename $TMPC .c).o
append TMPFILES $TMPO
add_cflags -D__gnuc_va_list=va_list -D__USER_LABEL_PREFIX__=
CC_DEPFLAGS='-ppa -ppd=$(@:.o=.d)'
AS_DEPFLAGS='-MMD'
speed_cflags='-O3 -mf=5'
size_cflags='-O3 -mf=2'
filter_cflags=tms470_flags
tms470_flags(){
for flag; do
case $flag in
-march=*|-mcpu=*)
case "${flag#*=}" in
armv7-a|cortex-a*) echo -mv=7a8 ;;
armv7-r|cortex-r*) echo -mv=7r4 ;;
armv7-m|cortex-m*) echo -mv=7m3 ;;
armv6*|arm11*) echo -mv=6 ;;
armv5*e|arm[79]*e*|arm9[24]6*|arm96*|arm102[26])
echo -mv=5e ;;
armv4*|arm7*|arm9[24]*) echo -mv=4 ;;
esac
;;
-mfpu=neon) echo --float_support=vfpv3 --neon ;;
-mfpu=vfp) echo --float_support=vfpv2 ;;
-mfpu=vfpv3) echo --float_support=vfpv3 ;;
-msoft-float) echo --float_support=vfplib ;;
-O[0-3]|-mf=*) echo $flag ;;
-g) echo -g -mn ;;
-pds=*) echo $flag ;;
esac
done
}
elif $cc -v 2>&1 | grep -q clang; then
cc_type=clang
$cc -dM -E $TMPC | grep -q __clang_version__ &&
cc_version=__clang_version__ || cc_version=__VERSION__
cc_ident=$($cc --version | head -n1)
CC_DEPFLAGS='-MMD'
AS_DEPFLAGS='-MMD'
speed_cflags='-O3'
size_cflags='-Os'
elif $cc -V 2>&1 | grep -q Sun; then
cc_type=suncc
cc_version="AV_STRINGIFY(__SUNPRO_C)"
cc_ident=$($cc -V 2>&1 | head -n1 | cut -d' ' -f 2-)
DEPEND_CMD='$(DEPCC) $(DEPFLAGS) $< | sed -e "1s,^.*: ,$@: ," -e "$$!s,$$, \," -e "1!s,^.*: , ," > $(@:.o=.d)'
DEPFLAGS='$(CPPFLAGS) $(CFLAGS) -xM1'
add_ldflags -xc99
speed_cflags='-O5'
size_cflags='-O5 -xspace'
filter_cflags=suncc_flags
suncc_flags(){
for flag; do
case $flag in
-march=*|-mcpu=*)
case "${flag#*=}" in
native) echo -xtarget=native ;;
v9|niagara) echo -xarch=sparc ;;
ultrasparc) echo -xarch=sparcvis ;;
ultrasparc3|niagara2) echo -xarch=sparcvis2 ;;
i586|pentium) echo -xchip=pentium ;;
i686|pentiumpro|pentium2) echo -xtarget=pentium_pro ;;
pentium3*|c3-2) echo -xtarget=pentium3 ;;
pentium-m) echo -xarch=sse2 -xchip=pentium3 ;;
pentium4*) echo -xtarget=pentium4 ;;
prescott|nocona) echo -xarch=sse3 -xchip=pentium4 ;;
*-sse3) echo -xarch=sse3 ;;
core2) echo -xarch=ssse3 -xchip=core2 ;;
amdfam10|barcelona) echo -xarch=sse4_1 ;;
athlon-4|athlon-[mx]p) echo -xarch=ssea ;;
k8|opteron|athlon64|athlon-fx)
echo -xarch=sse2a ;;
athlon*) echo -xarch=pentium_proa ;;
esac
;;
-std=c99) echo -xc99 ;;
-fomit-frame-pointer) echo -xregs=frameptr ;;
-fPIC) echo -KPIC -xcode=pic32 ;;
-W*,*) echo $flag ;;
-f*-*|-W*) ;;
*) echo $flag ;;
esac
done
}
elif $cc -v 2>&1 | grep -q 'PathScale|Path64'; then
cc_type=pathscale
cc_version=__PATHSCALE__
cc_ident=$($cc -v 2>&1 | head -n1 | tr -d :)
CC_DEPFLAGS='-MMD -MF $(@:.o=.d) -MT $@'
AS_DEPFLAGS='-MMD -MF $(@:.o=.d) -MT $@'
speed_cflags='-O2'
size_cflags='-Os'
filter_cflags='filter_out -Wdisabled-optimization'
elif $cc -v 2>&1 | grep -q Open64; then
cc_type=open64
cc_version=__OPEN64__
cc_ident=$($cc -v 2>&1 | head -n1 | tr -d :)
CC_DEPFLAGS='-MMD -MF $(@:.o=.d) -MT $@'
AS_DEPFLAGS='-MMD -MF $(@:.o=.d) -MT $@'
speed_cflags='-O2'
size_cflags='-Os'
filter_cflags='filter_out -Wdisabled-optimization|-Wtype-limits|-fno-signed-zeros'
fi
test -n "$cc_type" && enable $cc_type ||
warn "Unknown C compiler $cc, unable to select optimal CFLAGS"
: ${as_default:=$cc}
: ${dep_cc_default:=$cc}
: ${ld_default:=$cc}
set_default ar as dep_cc ld
test -n "$CC_DEPFLAGS" || CCDEP=$DEPEND_CMD
test -n "$CXX_DEPFLAGS" || CXXDEP=$DEPEND_CMD
test -n "$AS_DEPFLAGS" || ASDEP=$DEPEND_CMD
add_cflags $extra_cflags
add_cxxflags $extra_cxxflags
add_asflags $extra_cflags
if test -n "$sysroot"; then
case "$cc_type" in
gcc|llvm_gcc|clang)
add_cppflags --sysroot="$sysroot"
add_ldflags --sysroot="$sysroot"
;;
tms470)
add_cppflags -I"$sysinclude"
add_ldflags --sysroot="$sysroot"
;;
esac
fi
if test "$cpu" = host; then
enabled cross_compile && die "--cpu=host makes no sense when cross-compiling."
case "$cc_type" in
gcc|llvm_gcc)
check_native(){
$cc $1=native -v -c -o $TMPO $TMPC >$TMPE 2>&1 || return
sed -n "/cc1.*$1=/{
s/.*$1=\([^ ]*\).*/\1/
p
q
}" $TMPE
}
cpu=$(check_native -march || check_native -mcpu)
;;
esac
test "${cpu:-host}" = host && die "--cpu=host not supported with compiler $cc"
fi
# Deal with common $arch aliases
case "$arch" in
arm*|iPad*)
arch="arm"
;;
mips|mipsel|IP*)
arch="mips"
;;
mips64*)
arch="mips"
subarch="mips64"
;;
parisc|hppa)
arch="parisc"
;;
parisc64|hppa64)
arch="parisc"
subarch="parisc64"
;;
"Power Macintosh"|ppc|powerpc|ppc64|powerpc64)
arch="ppc"
;;
s390|s390x)
arch="s390"
;;
sh4|sh)
arch="sh4"
;;
sun4u|sparc64)
arch="sparc"
subarch="sparc64"
;;
i[3-6]86|i86pc|BePC|x86pc|x86_64|x86_32|amd64)
arch="x86"
;;
esac
is_in $arch $ARCH_LIST || warn "unknown architecture $arch"
enable $arch
# Add processor-specific flags
#根据CPU类型的不同，进行cpuflag的设置
if test "$cpu" = generic; then
: do nothing
elif enabled ppc; then
case $(tolower $cpu) in
601|ppc601|powerpc601)
cpuflags="-mcpu=601"
disable altivec
;;
603*|ppc603*|powerpc603*)
cpuflags="-mcpu=603"
disable altivec
;;
604*|ppc604*|powerpc604*)
cpuflags="-mcpu=604"
disable altivec
;;
g3|75*|ppc75*|powerpc75*)
cpuflags="-mcpu=750 -mpowerpc-gfxopt"
disable altivec
;;
g4|745*|ppc745*|powerpc745*)
cpuflags="-mcpu=7450 -mpowerpc-gfxopt"
;;
74*|ppc74*|powerpc74*)
cpuflags="-mcpu=7400 -mpowerpc-gfxopt"
;;
g5|970|ppc970|powerpc970|power4*)
cpuflags="-mcpu=970 -mpowerpc-gfxopt -mpowerpc64"
;;
cell)
cpuflags="-mcpu=cell"
enable ldbrx
;;
e500v2)
cpuflags="-mcpu=8548 -mhard-float -mfloat-gprs=double"
disable altivec
;;
e500)
cpuflags="-mcpu=8540 -mhard-float"
disable altivec
;;
esac
#X86架构
elif enabled x86; then
case $cpu in
i[345]86|pentium)
cpuflags="-march=$cpu"
disable mmx
;;
# targets that do NOT support conditional mov (cmov)
pentium-mmx|k6|k6-[23]|winchip-c6|winchip2|c3)
cpuflags="-march=$cpu"
disable cmov
;;
# targets that do support conditional mov (cmov)
i686|pentiumpro|pentium[23]|pentium-m|athlon|athlon-tbird|athlon-4|athlon-[mx]p|athlon64*|k8*|opteron*|athlon-fx|core2|amdfam10|barcelona|atom)
cpuflags="-march=$cpu"
enable cmov
enable fast_cmov
;;
# targets that do support conditional mov but on which it's slow
pentium4|pentium4m|prescott|nocona)
cpuflags="-march=$cpu"
enable cmov
disable fast_cmov
;;
esac
elif enabled sparc; then
case $cpu in
niagara)
cpuflags="-mcpu=$cpu"
disable vis
;;
sparc64)
cpuflags="-mcpu=v9"
;;
esac
#ARM架构
elif enabled arm; then
case $cpu in
armv*)
cpuflags="-march=$cpu"
subarch=$(echo $cpu | sed 's/[^a-z0-9]//g')
;;
*)
cpuflags="-mcpu=$cpu"
case $cpu in
cortex-a*) subarch=armv7a ;;
cortex-r*) subarch=armv7r ;;
cortex-m*) enable thumb; subarch=armv7m ;;
arm11*) subarch=armv6 ;;
arm[79]*e*|arm9[24]6*|arm96*|arm102[26]) subarch=armv5te ;;
armv4*|arm7*|arm9[24]*) subarch=armv4 ;;
esac
;;
esac
elif enabled alpha; then
enabled ccc && cpuflags="-arch $cpu" || cpuflags="-mcpu=$cpu"
elif enabled bfin; then
cpuflags="-mcpu=$cpu"
elif enabled mips; then
cpuflags="-march=$cpu"
elif enabled avr32; then
case $cpu in
ap7[02]0[0-2])
subarch="avr32_ap"
cpuflags="-mpart=$cpu"
;;
ap)
subarch="avr32_ap"
cpuflags="-march=$cpu"
;;
uc3[ab]*)
subarch="avr32_uc"
cpuflags="-mcpu=$cpu"
;;
uc)
subarch="avr32_uc"
cpuflags="-march=$cpu"
;;
esac
fi
add_cflags $cpuflags
add_asflags $cpuflags
# compiler sanity check
# 用个简单的main()检查能不能用
check_exec <
EOF
check_cc -D_LARGEFILE_SOURCE <
EOF
check_host_cflags -std=c99
check_host_cflags -Wall
#32位系统指针变量占用32bit（4Byte）数据（32位寻址）
#64位系统指针变量占用64bit（4Byte）数据（64位寻址）
case "$arch" in
alpha|ia64|mips|parisc|sparc)
spic=$shared
;;
x86)
subarch="x86_32"
check_cc < mapfile && add_ldflags -Wl,-M,mapfile
nm_opts='-P -g'
;;
netbsd)
disable symver
oss_indev_extralibs="-lossaudio"
oss_outdev_extralibs="-lossaudio"
;;
openbsd)
enable malloc_aligned
# On OpenBSD 4.5. the compiler does not use PIC unless
# explicitly using -fPIC. FFmpeg builds fine without PIC,
# however the generated executable will not do anything
# (simply quits with exit-code 1, no crash, no output).
# Thus explicitly enable PIC here.
enable pic
disable symver
SHFLAGS='-shared'
oss_indev_extralibs="-lossaudio"
oss_outdev_extralibs="-lossaudio"
;;
dragonfly)
enable malloc_aligned
disable symver
;;
freebsd)
enable malloc_aligned
;;
bsd/os)
add_extralibs -lpoll -lgnugetopt
strip="strip -d"
;;
#苹果Mac操作系统
darwin)
enable malloc_aligned
#以前见过这个
gas="gas-preprocessor.pl $cc"
enabled ppc && add_asflags -force_cpusubtype_ALL
SHFLAGS='-dynamiclib -Wl,-single_module -Wl,-install_name,$(SHLIBDIR)/$(SLIBNAME),-current_version,$(LIBVERSION),-compatibility_version,$(LIBMAJOR)'
enabled x86_32 && append SHFLAGS -Wl,-read_only_relocs,suppress
strip="${strip} -x"
add_ldflags -Wl,-dynamic,-search_paths_first
#Mac下的动态库
SLIBSUF=".dylib"
SLIBNAME_WITH_VERSION='$(SLIBPREF)$(FULLNAME).$(LIBVERSION)$(SLIBSUF)'
SLIBNAME_WITH_MAJOR='$(SLIBPREF)$(FULLNAME).$(LIBMAJOR)$(SLIBSUF)'
FFSERVERLDFLAGS=-Wl,-bind_at_load
#macho目标文件格式
objformat="macho"
enabled x86_64 && objformat="macho64"
enabled_any pic shared ||
{ check_cflags -mdynamic-no-pic && add_asflags -mdynamic-no-pic; }
;;
#MinGW
mingw32*)
if test $target_os = "mingw32ce"; then
disable network
else
target_os=mingw32
fi
LIBTARGET=i386
if enabled x86_64; then
enable malloc_aligned
LIBTARGET=x64
elif enabled arm; then
LIBTARGET=arm-wince
fi
shlibdir_default="$bindir_default"
SLIBPREF=""
# Windows下动态库后缀
SLIBSUF=".dll"
SLIBNAME_WITH_VERSION='$(SLIBPREF)$(FULLNAME)-$(LIBVERSION)$(SLIBSUF)'
SLIBNAME_WITH_MAJOR='$(SLIBPREF)$(FULLNAME)-$(LIBMAJOR)$(SLIBSUF)'
# 借助lib.exe生成导出库lib
SLIB_EXTRA_CMD='-lib.exe /machine:$(LIBTARGET) /def:$$(@:$(SLIBSUF)=.def) /out:$(SUBDIR)$(SLIBNAME:$(SLIBSUF)=.lib)'
SLIB_INSTALL_NAME='$(SLIBNAME_WITH_MAJOR)'
SLIB_INSTALL_LINKS=
#额外的lib导入库
SLIB_INSTALL_EXTRA_SHLIB='$(SLIBNAME:$(SLIBSUF)=.lib)'
#额外的
SLIB_INSTALL_EXTRA_LIB='lib$(SLIBNAME:$(SLIBSUF)=.dll.a) $(SLIBNAME_WITH_MAJOR:$(SLIBSUF)=.def)'
SHFLAGS='-shared -Wl,--output-def,$$(@:$(SLIBSUF)=.def) -Wl,--out-implib,$(SUBDIR)lib$(SLIBNAME:$(SLIBSUF)=.dll.a) -Wl,--enable-runtime-pseudo-reloc -Wl,--enable-auto-image-base'
# windows PE格式
objformat="win32"
enable dos_paths
check_cflags -fno-common
check_cpp_condition _mingw.h "defined (__MINGW64_VERSION_MAJOR) || (__MINGW32_MAJOR_VERSION > 3)
|| (__MINGW32_MAJOR_VERSION == 3 && __MINGW32_MINOR_VERSION >= 15)" ||
die "ERROR: MinGW runtime version must be >= 3.15."
add_cppflags -U__STRICT_ANSI__
;;
#Cygwin
cygwin*)
target_os=cygwin
shlibdir_default="$bindir_default"
SLIBPREF="cyg"
SLIBSUF=".dll"
SLIBNAME_WITH_VERSION='$(SLIBPREF)$(FULLNAME)-$(LIBVERSION)$(SLIBSUF)'
SLIBNAME_WITH_MAJOR='$(SLIBPREF)$(FULLNAME)-$(LIBMAJOR)$(SLIBSUF)'
SHFLAGS='-shared -Wl,--enable-auto-image-base'
objformat="win32"
enable dos_paths
check_cflags -fno-common
add_cppflags -U__STRICT_ANSI__
;;
*-dos|freedos|opendos)
network_extralibs="-lsocket"
objformat="coff"
enable dos_paths
add_cppflags -U__STRICT_ANSI__
;;
#Linux操作系统
linux)
add_cppflags -D_POSIX_C_SOURCE=200112 -D_XOPEN_SOURCE=600
enable dv1394
;;
irix*)
target_os=irix
ranlib="echo ignoring ranlib"
;;
os/2*)
strip="lxlite -CS"
ln_s="cp -f"
objformat="aout"
add_cppflags -D_GNU_SOURCE
add_ldflags -Zomf -Zbin-files -Zargs-wild -Zmap
SHFLAGS='$(SUBDIR)$(NAME).def -Zdll -Zomf'
FFSERVERLDFLAGS=""
LIBSUF="_s.a"
SLIBPREF=""
SLIBSUF=".dll"
SLIBNAME_WITH_VERSION='$(SLIBPREF)$(NAME)-$(LIBVERSION)$(SLIBSUF)'
SLIBNAME_WITH_MAJOR='$(SLIBPREF)$(shell echo $(NAME) | cut -c1-6)$(LIBMAJOR)$(SLIBSUF)'
SLIB_CREATE_DEF_CMD='echo LIBRARY $(SLIBNAME_WITH_MAJOR) INITINSTANCE TERMINSTANCE > $(SUBDIR)$(NAME).def;
echo PROTMODE >> $(SUBDIR)$(NAME).def;
echo CODE PRELOAD MOVEABLE DISCARDABLE >> $(SUBDIR)$(NAME).def;
echo DATA PRELOAD MOVEABLE MULTIPLE NONSHARED >> $(SUBDIR)$(NAME).def;
echo EXPORTS >> $(SUBDIR)$(NAME).def;
emxexp -o $(OBJS) >> $(SUBDIR)$(NAME).def'
SLIB_EXTRA_CMD='emximp -o $(SUBDIR)$(LIBPREF)$(NAME)_dll.a $(SUBDIR)$(NAME).def;
emximp -o $(SUBDIR)$(LIBPREF)$(NAME)_dll.lib $(SUBDIR)$(NAME).def;'
SLIB_INSTALL_EXTRA_LIB='$(LIBPREF)$(NAME)_dll.a $(LIBPREF)$(NAME)_dll.lib'
enable dos_paths
enable_weak os2threads
;;
gnu/kfreebsd)
add_cppflags -D_POSIX_C_SOURCE=200112 -D_XOPEN_SOURCE=600 -D_BSD_SOURCE
;;
gnu)
add_cppflags -D_POSIX_C_SOURCE=200112 -D_XOPEN_SOURCE=600
;;
qnx)
add_cppflags -D_QNX_SOURCE
network_extralibs="-lsocket"
;;
symbian)
SLIBSUF=".dll"
enable dos_paths
add_cflags --include=$sysinclude/gcce/gcce.h -fvisibility=default
add_cppflags -D__GCCE__ -D__SYMBIAN32__ -DSYMBIAN_OE_POSIX_SIGNALS
add_ldflags -Wl,--target1-abs,--no-undefined
-Wl,-Ttext,0x80000,-Tdata,0x1000000 -shared
-Wl,--entry=_E32Startup -Wl,-u,_E32Startup
add_extralibs -l:eexe.lib -l:usrt2_2.lib -l:dfpaeabi.dso
-l:drtaeabi.dso -l:scppnwdl.dso -lsupc++ -lgcc
-l:libc.dso -l:libm.dso -l:euser.dso -l:libcrt0.lib
;;
none)
;;
*)
die "Unknown OS '$target_os'."
;;
esac
echo "config:$arch:$subarch:$cpu:$target_os:$cc_ident:$FFMPEG_CONFIGURATION" >config.fate
check_cpp_condition stdlib.h "defined(__PIC__) || defined(__pic__) || defined(PIC)" && enable pic
set_default $PATHS_LIST
# we need to build at least one lib type
if ! enabled_any static shared; then
cat <= 2.0.0" aacplus.h aacplusEncOpen -laacplus
enabled libass && require_pkg_config libass ass/ass.h ass_library_init
enabled libcelt && require libcelt celt/celt.h celt_decode -lcelt0 &&
{ check_lib celt/celt.h celt_decoder_create_custom -lcelt0 ||
die "ERROR: libcelt version must be >= 0.11.0."; }
enabled libdc1394 && require_pkg_config libdc1394-2 dc1394/dc1394.h dc1394_new
enabled libdirac && require_pkg_config dirac
"libdirac_decoder/dirac_parser.h libdirac_encoder/dirac_encoder.h"
"dirac_decoder_init dirac_encoder_init"
#测试libfaac
enabled libfaac && require2 libfaac "stdint.h faac.h" faacEncGetVersion -lfaac
enabled libfreetype && require_pkg_config freetype2 "ft2build.h freetype/freetype.h" FT_Init_FreeType
enabled libgsm && require libgsm gsm/gsm.h gsm_create -lgsm
enabled libmodplug && require libmodplug libmodplug/modplug.h ModPlug_Load -lmodplug
enabled libmp3lame && require "libmp3lame >= 3.98.3" lame/lame.h lame_set_VBR_quality -lmp3lame
enabled libnut && require libnut libnut.h nut_demuxer_init -lnut
enabled libopencore_amrnb && require libopencore_amrnb opencore-amrnb/interf_dec.h Decoder_Interface_init -lopencore-amrnb
enabled libopencore_amrwb && require libopencore_amrwb opencore-amrwb/dec_if.h D_IF_init -lopencore-amrwb
enabled libopencv && require_pkg_config opencv opencv/cxcore.h cvCreateImageHeader
enabled libopenjpeg && require libopenjpeg openjpeg.h opj_version -lopenjpeg
enabled libpulse && require_pkg_config libpulse-simple pulse/simple.h pa_simple_new
enabled librtmp && require_pkg_config librtmp librtmp/rtmp.h RTMP_Socket
enabled libschroedinger && require_pkg_config schroedinger-1.0 schroedinger/schro.h schro_init
enabled libspeex && require libspeex speex/speex.h speex_decoder_init -lspeex
enabled libstagefright_h264 && require_cpp libstagefright_h264 "binder/ProcessState.h media/stagefright/MetaData.h
media/stagefright/MediaBufferGroup.h media/stagefright/MediaDebug.h media/stagefright/MediaDefs.h
media/stagefright/OMXClient.h media/stagefright/OMXCodec.h" android::OMXClient -lstagefright -lmedia -lutils -lbinder
enabled libtheora && require libtheora theora/theoraenc.h th_info_init -ltheoraenc -ltheoradec -logg
enabled libutvideo && require_cpp utvideo "stdint.h stdlib.h utvideo/utvideo.h utvideo/Codec.h" 'CCodec*' -lutvideo -lstdc++
enabled libv4l2 && require_pkg_config libv4l2 libv4l2.h v4l2_ioctl
enabled libvo_aacenc && require libvo_aacenc vo-aacenc/voAAC.h voGetAACEncAPI -lvo-aacenc
enabled libvo_amrwbenc && require libvo_amrwbenc vo-amrwbenc/enc_if.h E_IF_init -lvo-amrwbenc
enabled libvorbis && require libvorbis vorbis/vorbisenc.h vorbis_info_init -lvorbisenc -lvorbis -logg
enabled libvpx && {
enabled libvpx_decoder && { check_lib2 "vpx/vpx_decoder.h vpx/vp8dx.h" vpx_codec_dec_init_ver -lvpx ||
die "ERROR: libvpx decoder version must be >=0.9.1"; }
enabled libvpx_encoder && { check_lib2 "vpx/vpx_encoder.h vpx/vp8cx.h" "vpx_codec_enc_init_ver VPX_CQ" -lvpx ||
die "ERROR: libvpx encoder version must be >=0.9.6"; } }
#测试libx264
enabled libx264 && require libx264 x264.h x264_encoder_encode -lx264 &&
{ check_cpp_condition x264.h "X264_BUILD >= 118" ||
die "ERROR: libx264 version must be >= 0.118."; }
enabled libxavs && require libxavs xavs.h xavs_encoder_encode -lxavs
enabled libxvid && require libxvid xvid.h xvid_global -lxvidcore
enabled openal && { { for al_libs in "${OPENAL_LIBS}" "-lopenal" "-lOpenAL32"; do
check_lib 'AL/al.h' alGetError "${al_libs}" && break; done } ||
die "ERROR: openal not found"; } &&
{ check_cpp_condition "AL/al.h" "defined(AL_VERSION_1_1)" ||
die "ERROR: openal version must be 1.1 or compatible"; }
enabled mlib && require mediaLib mlib_types.h mlib_VectorSub_S16_U8_Mod -lmlib
enabled openssl && { check_lib openssl/ssl.h SSL_library_init -lssl -lcrypto ||
check_lib openssl/ssl.h SSL_library_init -lssl32 -leay32 ||
check_lib openssl/ssl.h SSL_library_init -lssl -lcrypto -lws2_32 -lgdi32 ||
die "ERROR: openssl not found"; }
#检查SDL
SDL_CONFIG="${cross_prefix}sdl-config"
if check_pkg_config sdl SDL_version.h SDL_Linked_Version; then
check_cpp_condition SDL.h "(SDL_MAJOR_VERSION<<16 | SDL_MINOR_VERSION<<8 | SDL_PATCHLEVEL) >= 0x010201" $sdl_cflags &&
enable sdl &&
check_struct SDL.h SDL_VideoInfo current_w $sdl_cflags && enable sdl_video_size
else
if "${SDL_CONFIG}" --version > /dev/null 2>&1; then
sdl_cflags=$("${SDL_CONFIG}" --cflags)
sdl_libs=$("${SDL_CONFIG}" --libs)
check_func_headers SDL_version.h SDL_Linked_Version $sdl_cflags $sdl_libs &&
check_cpp_condition SDL.h "(SDL_MAJOR_VERSION<<16 | SDL_MINOR_VERSION<<8 | SDL_PATCHLEVEL) >= 0x010201" $sdl_cflags &&
enable sdl &&
check_struct SDL.h SDL_VideoInfo current_w $sdl_cflags && enable sdl_video_size
fi
fi
enabled sdl && add_cflags $sdl_cflags && add_extralibs $sdl_libs
texi2html -version > /dev/null 2>&1 && enable texi2html || disable texi2html
makeinfo --version > /dev/null 2>&1 && enable makeinfo || disable makeinfo
#检查头文件
check_header linux/fb.h
check_header linux/videodev.h
check_header linux/videodev2.h
check_struct linux/videodev2.h "struct v4l2_frmivalenum" discrete
check_header sys/videoio.h
check_func_headers "windows.h vfw.h" capCreateCaptureWindow "$vfwcap_indev_extralibs"
# check that WM_CAP_DRIVER_CONNECT is defined to the proper value
# w32api 3.12 had it defined wrong
check_cpp_condition vfw.h "WM_CAP_DRIVER_CONNECT > WM_USER" && enable vfwcap_defines
check_type "dshow.h" IBaseFilter
# check for ioctl_meteor.h, ioctl_bt848.h and alternatives
{ check_header dev/bktr/ioctl_meteor.h &&
check_header dev/bktr/ioctl_bt848.h; } ||
{ check_header machine/ioctl_meteor.h &&
check_header machine/ioctl_bt848.h; } ||
{ check_header dev/video/meteor/ioctl_meteor.h &&
check_header dev/video/bktr/ioctl_bt848.h; } ||
check_header dev/ic/bt8xx.h
check_header sndio.h
if check_struct sys/soundcard.h audio_buf_info bytes; then
enable_safe sys/soundcard.h
else
check_cc -D__BSD_VISIBLE -D__XSI_VISIBLE <
audio_buf_info abc;
EOF
fi
check_header soundcard.h
enabled_any alsa_indev alsa_outdev && check_lib2 alsa/asoundlib.h snd_pcm_htimestamp -lasound
enabled jack_indev && check_lib2 jack/jack.h jack_client_open -ljack && check_func sem_timedwait
enabled_any sndio_indev sndio_outdev && check_lib2 sndio.h sio_open -lsndio
enabled libcdio &&
check_lib2 "cdio/cdda.h cdio/paranoia.h" cdio_cddap_open "-lcdio_paranoia -lcdio_cdda -lcdio"
enabled x11grab &&
check_header X11/Xlib.h &&
check_header X11/extensions/XShm.h &&
check_header X11/extensions/Xfixes.h &&
check_func XOpenDisplay -lX11 &&
check_func XShmCreateImage -lX11 -lXext &&
check_func XFixesGetCursorImage -lX11 -lXext -lXfixes
if ! disabled vaapi; then
check_lib va/va.h vaInitialize -lva && {
check_cpp_condition va/va_version.h "VA_CHECK_VERSION(0,32,0)" ||
warn "Please upgrade to VA-API >= 0.32 if you would like full VA-API support.";
} || disable vaapi
fi
if ! disabled vdpau && enabled vdpau_vdpau_h; then
check_cpp_condition
vdpau/vdpau.h "defined VDP_DECODER_PROFILE_MPEG4_PART2_ASP" ||
{ echolog "Please upgrade to libvdpau >= 0.2 if you would like vdpau support." &&
disable vdpau; }
fi
enabled debug && add_cflags -g"$debuglevel" && add_asflags -g"$debuglevel"
enabled coverage && add_cflags "-fprofile-arcs -ftest-coverage" && add_ldflags "-fprofile-arcs -ftest-coverage"
test -n "$valgrind" && target_exec="$valgrind --error-exitcode=1 --malloc-fill=0x2a --track-origins=yes --leak-check=full --gen-suppressions=all --suppressions=$source_path/tests/fate-valgrind.supp"
#添加一些编译选项
# add some useful compiler flags if supported
check_cflags -Wdeclaration-after-statement
check_cflags -Wall
check_cflags -Wno-parentheses
check_cflags -Wno-switch
check_cflags -Wno-format-zero-length
check_cflags -Wdisabled-optimization
check_cflags -Wpointer-arith
check_cflags -Wredundant-decls
check_cflags -Wno-pointer-sign
check_cflags -Wcast-qual
check_cflags -Wwrite-strings
check_cflags -Wtype-limits
check_cflags -Wundef
check_cflags -Wmissing-prototypes
check_cflags -Wno-pointer-to-int-cast
check_cflags -Wstrict-prototypes
enabled extra_warnings && check_cflags -Winline
# add some linker flags
check_ldflags -Wl,--warn-common
check_ldflags -Wl,-rpath-link=libpostproc:libswresample:libswscale:libavfilter:libavdevice:libavformat:libavcodec:libavutil
test_ldflags -Wl,-Bsymbolic && append SHFLAGS -Wl,-Bsymbolic
echo "X{};" > $TMPV
if test_ldflags -Wl,--version-script,$TMPV; then
append SHFLAGS '-Wl,--version-script,$(SUBDIR)lib$(NAME).ver'
check_cc < config.mak <> config.mak
eval echo "${lcname}_VERSION_MAJOR=$${name}_VERSION_MAJOR" >> config.mak
}
#获取版本
get_version LIBAVCODEC libavcodec/version.h
get_version LIBAVDEVICE libavdevice/avdevice.h
get_version LIBAVFILTER libavfilter/version.h
get_version LIBAVFORMAT libavformat/version.h
get_version LIBAVUTIL libavutil/avutil.h
get_version LIBPOSTPROC libpostproc/postprocess.h
get_version LIBSWRESAMPLE libswresample/swresample.h
get_version LIBSWSCALE libswscale/swscale.h
#config.h前面需要添加的一些内容（TMPH是一个临时文件，最终会拷贝给config.h）
cat > $TMPH <>$TMPH
if enabled small || disabled optimizations; then
echo "#undef av_always_inline" >> $TMPH
if enabled small; then
echo "#define av_always_inline inline" >> $TMPH
else
echo "#define av_always_inline av_unused" >> $TMPH
fi
fi
#包含yasm
if enabled yasm; then
append config_files $TMPASM
printf '' >$TMPASM
fi
#输出所有的配置信息包含3类：
#以“ARCH_”开头，包含系统架构信息
#以“HAVE_”开头，包含系统特征信息
#以“CONFIG_”开头，包含编译配置（数量最多，包含协议、复用器、编解码器等的配置，将近1000行）
#config_files
print_config ARCH_ "$config_files" $ARCH_LIST
print_config HAVE_ "$config_files" $HAVE_LIST
print_config CONFIG_ "$config_files" $CONFIG_LIST
$CONFIG_EXTRA
$ALL_COMPONENTS
#经过测试的组件？
cat >>config.mak <> $TMPH
#结束了
echo "endif # FFMPEG_CONFIG_MAK" >> config.mak
# 关键：临时文件拷贝至config.h
# Do not overwrite an unchanged config.h to avoid superfluous rebuilds.
# 配置没有变化的时候，不重新生成config.h（重新生成config.h会导致大量文件需要重新编译）
#
cp_if_changed $TMPH config.h
# touch fileA
# 如果fileA不存在，touch指令会在当前目录下新建一个空白文件fileA。
touch .config
enabled yasm && cp_if_changed $TMPASM config.asm
cat > $TMPH <> $TMPH <> $TMPH
cp_if_changed $TMPH libavutil/avconfig.h
test -n "$WARNINGS" && printf "n$WARNINGS"
# build pkg-config files
pkgconfig_generate(){
name=$1
shortname=${name#lib}${build_suffix}
comment=$2
version=$3
libs=$4
requires=$5
enabled ${name#lib} || return 0
mkdir -p $name
cat < $name/$name.pc
prefix=$prefix
exec_prefix=${prefix}
libdir=$libdir
includedir=$incdir
Name: $name
Description: $comment
Version: $version
Requires: $(enabled shared || echo $requires)
Requires.private: $(enabled shared && echo $requires)
Conflicts:
Libs: -L${libdir} -l${shortname} $(enabled shared || echo $libs)
Libs.private: $(enabled shared && echo $libs)
Cflags: -I${includedir}
EOF
cat < $name/$name-uninstalled.pc
prefix=
exec_prefix=
libdir=${pcfiledir}
includedir=${source_path}
Name: $name
Description: $comment
Version: $version
Requires: $requires
Conflicts:
Libs: ${libdir}/${LIBPREF}${shortname}${LIBSUF} $libs
Cflags: -I${includedir}
EOF
}
pkgconfig_generate libavutil "FFmpeg utility library" "$LIBAVUTIL_VERSION" "$LIBM"
pkgconfig_generate libavcodec "FFmpeg codec library" "$LIBAVCODEC_VERSION" "$extralibs" "libavutil = $LIBAVUTIL_VERSION"
pkgconfig_generate libavformat "FFmpeg container format library" "$LIBAVFORMAT_VERSION" "$extralibs" "libavcodec = $LIBAVCODEC_VERSION"
pkgconfig_generate libavdevice "FFmpeg device handling library" "$LIBAVDEVICE_VERSION" "$extralibs" "libavformat = $LIBAVFORMAT_VERSION"
pkgconfig_generate libavfilter "FFmpeg video filtering library" "$LIBAVFILTER_VERSION" "$extralibs"
pkgconfig_generate libpostproc "FFmpeg postprocessing library" "$LIBPOSTPROC_VERSION" "" "libavutil = $LIBAVUTIL_VERSION"
pkgconfig_generate libswscale "FFmpeg image rescaling library" "$LIBSWSCALE_VERSION" "$LIBM" "libavutil = $LIBAVUTIL_VERSION"
pkgconfig_generate libswresample "FFmpeg audio rescaling library" "$LIBSWRESAMPLE_VERSION" "$LIBM" "libavutil = $LIBAVUTIL_VERSION" 来源:http://blog.csdn.net/leixiaohua1020
推荐阅读
最新回复 (0)
站点信息
- 文章2302
- 用户1336
- 访客10968998
每日一句
Qingming Festival invites us to honor ancestors with quiet reflection and respect.
清明节邀请我们以静思与敬意祭奠祖先。
清明节邀请我们以静思与敬意祭奠祖先。
