本身是一个很老的技术了,不过本站讲的不够细,在一天时间用OpenFire打造自己的IM聊天工具 | IT十万个为什么有用这个控件。这里再简单引用下别人的代码。
其实有个Drawerlayout这个布局,你得问题就已经解决掉一大半了,Drawerlayout布局本身就提供了左划和右划的功能
先上代码,然后慢慢解答,看完这篇博客你就知道Drawerlayout怎么用了
首先上逐步局文件代码
Drawerlayout是Androidv4包里自带的,既然是自带的那么直接拿来用就可以了,当然前提是你得工程里有v4包

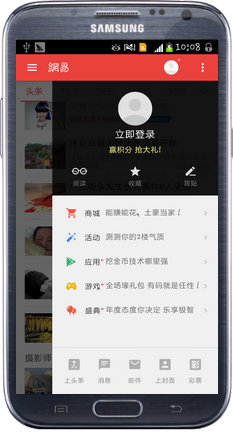

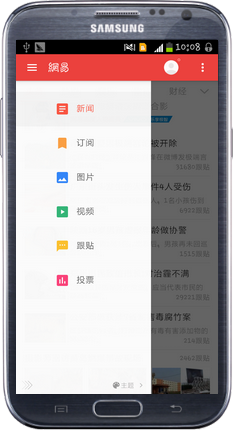

下面解释上面的布局文件,让你懂得Drawerlayout用法,首先Drawerlayout支持左划和右划,那他是如何控制的呢?不居中告诉你,以上布局分为三部分,一般情况下,第一部分是主步局,第二部分是左划的布局,第三部分是右划的布局,其实这里的左向滑动和右向滑动是通过gravity控制,左划界面android:layout_gravity="left" 当然这里的left也可以用start代替,右划界面就理所当然的是android:layout_gravity="right" ,同样right也可以用end代替,其余的应该明白了吧!不懂留言,我认真为你解答
下面在贴一下主界面的代码,你看懂Drawerlayout用法其余的就很简单了,妈妈再也不懂担心你的学习了
代码是最好的老师:drawermode-master
其实有个Drawerlayout这个布局,你得问题就已经解决掉一大半了,Drawerlayout布局本身就提供了左划和右划的功能
先上代码,然后慢慢解答,看完这篇博客你就知道Drawerlayout怎么用了
首先上逐步局文件代码
<android.support.v4.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:id="@+id/drawerlayout" android:layout_width="match_parent" android:layout_height="match_parent" > <FrameLayout android:id="@+id/fragment_layout" android:layout_width="match_parent" android:layout_height="match_parent" > </FrameLayout> <RelativeLayout android:id="@+id/left" android:layout_width="200dp" android:layout_height="match_parent" android:layout_gravity="left" android:background="@android:color/white"> <ListView android:id="@+id/left_listview" android:layout_width="match_parent" android:layout_height="match_parent" > </ListView> </RelativeLayout> <RelativeLayout android:id="@+id/right" android:layout_width="260dp" android:layout_height="match_parent" android:layout_gravity="right" android:background="@android:color/holo_green_light"> <TextView android:id="@+id/right_textview" android:layout_width="match_parent" android:layout_height="match_parent" android:text="个人登陆页面" /> </RelativeLayout> </android.support.v4.widget.DrawerLayout>
Drawerlayout是Androidv4包里自带的,既然是自带的那么直接拿来用就可以了,当然前提是你得工程里有v4包
下面解释上面的布局文件,让你懂得Drawerlayout用法,首先Drawerlayout支持左划和右划,那他是如何控制的呢?不居中告诉你,以上布局分为三部分,一般情况下,第一部分是主步局,第二部分是左划的布局,第三部分是右划的布局,其实这里的左向滑动和右向滑动是通过gravity控制,左划界面android:layout_gravity="left" 当然这里的left也可以用start代替,右划界面就理所当然的是android:layout_gravity="right" ,同样right也可以用end代替,其余的应该明白了吧!不懂留言,我认真为你解答
下面在贴一下主界面的代码,你看懂Drawerlayout用法其余的就很简单了,妈妈再也不懂担心你的学习了
package com.sdufe.thea.guo; import java.util.ArrayList; import java.util.List; import com.sdufe.thea.guo.adapter.ContentAdapter; import com.sdufe.thea.guo.model.ContentModel; import android.os.Bundle; import android.app.Activity; import android.support.v4.widget.DrawerLayout; import android.support.v4.widget.DrawerLayout.DrawerListener; import android.view.Menu; import android.view.MotionEvent; import android.view.View; import android.view.View.OnTouchListener; import android.widget.ArrayAdapter; import android.widget.ListView; import android.widget.RelativeLayout; import android.widget.TextView; public class MainActivity extends Activity { private DrawerLayout drawerLayout; private RelativeLayout leftLayout; private RelativeLayout rightLayout; private List<ContentModel> list; private ContentAdapter adapter; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); drawerLayout = (DrawerLayout) findViewById(R.id.drawerlayout); leftLayout=(RelativeLayout) findViewById(R.id.left); rightLayout=(RelativeLayout) findViewById(R.id.right); ListView listView=(ListView) leftLayout.findViewById(R.id.left_listview); initData(); adapter=new ContentAdapter(this, list); listView.setAdapter(adapter); } private void initData() { list=new ArrayList<ContentModel>(); list.add(new ContentModel(R.drawable.doctoradvice2, "新闻")); list.add(new ContentModel(R.drawable.infusion_selected, "订阅")); list.add(new ContentModel(R.drawable.mypatient_selected, "图片")); list.add(new ContentModel(R.drawable.mywork_selected, "视频")); list.add(new ContentModel(R.drawable.nursingcareplan2, "跟帖")); list.add(new ContentModel(R.drawable.personal_selected, "投票")); } }
代码是最好的老师:drawermode-master
