最近准备做个小项目，然后是PC端是用C++写的，服务端用PHP。加密用的是AES，128位的ECB模式。首先看PHP端的源码
结果如下:
string(9) "aaa中文" string(24) "o9FR2jRnS6+2c9auaEsKQg==" string(9) "aaa中文"
然后看下C++端源码。我简单封装了下。注意点因为VS2010默认字符串是GBK格式，我的服务是UTF8格式，所以转了下。先上转码部分，很简单。
然后Base64我就不上传了，这个网上一大堆。传上Aes封装部分。.H文件
.CPP文件
使用例子

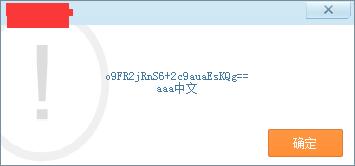

结果如下图：
和PHP端结果一样。
/**
* 利用mcrypt做AES加密解密
*/
class AES{
/**
* 算法,另外还有192和256两种长度
*/
const CIPHER = MCRYPT_RIJNDAEL_128;
/**
* 模式
*/
const MODE = MCRYPT_MODE_ECB;
/**
* 加密
* @param string $key 密钥
* @param string $str 需加密的字符串
* @return type
*/
static public function encode( $key, $str ){
$iv = mcrypt_create_iv(mcrypt_get_iv_size(self::CIPHER,self::MODE),MCRYPT_RAND);
return base64_encode(mcrypt_encrypt(self::CIPHER, $key, $str, self::MODE, $iv));
}
/**
* 解密
* @param type $key
* @param type $str
* @return type
*/
static public function decode( $key, $str ){
$str = base64_decode($str);
$iv = mcrypt_create_iv(mcrypt_get_iv_size(self::CIPHER,self::MODE),MCRYPT_RAND);
return mcrypt_decrypt(self::CIPHER, $key, $str, self::MODE, $iv);
}
}
$str = 'aaa中文';
$key = '1234567890987654';
$encode=AES::encode($key, $str);
$decode=AES::decode($key, $encode);
echo '<xmp>';
var_dump($str);
var_dump($encode);
var_dump(rtrim($decode));结果如下:
string(9) "aaa中文" string(24) "o9FR2jRnS6+2c9auaEsKQg==" string(9) "aaa中文"
然后看下C++端源码。我简单封装了下。注意点因为VS2010默认字符串是GBK格式，我的服务是UTF8格式，所以转了下。先上转码部分，很简单。
static string GBKToUTF8(const std::string& strGBK)
{
string strOutUTF8 = "";
WCHAR * str1;
int n = MultiByteToWideChar(CP_ACP, 0, strGBK.c_str(), -1, NULL, 0);
str1 = new WCHAR[n];
MultiByteToWideChar(CP_ACP, 0, strGBK.c_str(), -1, str1, n);
n = WideCharToMultiByte(CP_UTF8, 0, str1, -1, NULL, 0, NULL, NULL);
char * str2 = new char[n];
WideCharToMultiByte(CP_UTF8, 0, str1, -1, str2, n, NULL, NULL);
strOutUTF8 = str2;
delete[]str1;
str1 = NULL;
delete[]str2;
str2 = NULL;
return strOutUTF8;
}
static string UTF8ToGBK(const std::string& strUTF8)
{
int len = MultiByteToWideChar(CP_UTF8, 0, strUTF8.c_str(), -1, NULL, 0);
wchar_t * wszGBK = new wchar_t[len + 1];
memset(wszGBK, 0, len * 2 + 2);
MultiByteToWideChar(CP_UTF8, 0, (LPCTSTR)strUTF8.c_str(), -1, wszGBK, len);
len = WideCharToMultiByte(CP_ACP, 0, wszGBK, -1, NULL, 0, NULL, NULL);
char *szGBK = new char[len + 1];
memset(szGBK, 0, len + 1);
WideCharToMultiByte(CP_ACP,0, wszGBK, -1, szGBK, len, NULL, NULL);
//strUTF8 = szGBK;
std::string strTemp(szGBK);
delete[]szGBK;
delete[]wszGBK;
return strTemp;
}然后Base64我就不上传了，这个网上一大堆。传上Aes封装部分。.H文件
#ifndef _AES_H_
#define _AES_H_
/**
* 算法,另外还有192和256两种长度 const CIPHER = MCRYPT_RIJNDAEL_128;
*/
/**
* 模式 const MODE = MCRYPT_MODE_ECB;
*/
class CAES
{
public:
/*
* 功 能：初始化
* 参 数：key — 密钥，必须是16字节(128bit)
*/
CAES();
~CAES();
/*
* 封装AES加密，结果BASE64编码
* len长度是加密后返回的长度
*/
static string AesEncrypt(string src,void*& dst,int &len);
/*
*封装AES解密，结果BASE64解码
*/
static string AesDecrypt(void* data, size_t len);
/*
* 功 能：加密，加密后的字节串长度只会是16字节的整数倍
* 参 数：src_data — 需要加密的字节串，不允许为空
* src_len — src_data长度，不允许为0
* dst_data — 指向加密后字节串的指针，如果该指针为空或者dst_len小于加密后所需的字节长度，函数内部会自动分配空间
* dst_len — dst_data长度
* release_dst — 函数内部自动分配空间时是否删除现有空间
* 返回值: 加密字节串长度
*/
size_t Encrypt(IN const void* const src_data, IN size_t src_len, OUT void*& dst_data, IN size_t dst_len, IN bool release_dst = false);
/*
* 功 能：解密
* 参 数：data — [IN] 需要解密的字节串，不允许为空
* [OUT]解密后的字节串
* len — 字节串长度，该长度必须是16字节(128bit)的整数倍
*/
void Decrypt(IN OUT void* data, IN size_t len);
/*
* 功 能: 获取待加密的字节串被加密后字节长度
* 参 数: src_len — 需要加密的字节串长度
* 返回值: 加密后字节串长度
*/
size_t GetEncryptDataLen(IN size_t src_len) const;
private:
// 对data前16字节进行加密
void Encrypt(BYTE* data);
// 对data前16字节进行解密
void Decrypt(BYTE* data);
// 密钥扩展
void KeyExpansion(const BYTE* key);
BYTE FFmul(BYTE a, BYTE b);
// 轮密钥加变换
void AddRoundKey(BYTE data[][4], BYTE key[][4]);
// 加密字节替代
void EncryptSubBytes(BYTE data[][4]);
// 解密字节替代
void DecryptSubBytes(BYTE data[][4]);
// 加密行移位变换
void EncryptShiftRows(BYTE data[][4]);
// 解密行移位变换
void DecryptShiftRows(BYTE data[][4]);
// 加密列混淆变换
void EncryptMixColumns(BYTE data[][4]);
// 解密列混淆变换
void DecryptMixColumns(BYTE data[][4]);
private:
BYTE* encrypt_permutation_table_; // 加密置换表
BYTE* decrypt_permutation_table_; // 解密置换表
BYTE round_key_[11][4][4]; // 轮密钥
};
#endif // !_AES_H_.CPP文件
#include "StdAfx.h"
#include "Aes.h"
#include "Base64.h"
#include <assert.h>
#define KEY (const byte*)"1234567890987654"
CAES::CAES()
:encrypt_permutation_table_(new BYTE[256]),
decrypt_permutation_table_(new BYTE[256])
{
const BYTE encrypt_permutation_table[] = {
0x63,0x7C,0x77,0x7B,0xF2,0x6B,0x6F,0xC5,0x30,0x01,0x67,0x2B,0xFE,0xD7,0xAB,0x76,
0xCA,0x82,0xC9,0x7D,0xFA,0x59,0x47,0xF0,0xAD,0xD4,0xA2,0xAF,0x9C,0xA4,0x72,0xC0,
0xB7,0xFD,0x93,0x26,0x36,0x3F,0xF7,0xCC,0x34,0xA5,0xE5,0xF1,0x71,0xD8,0x31,0x15,
0x04,0xC7,0x23,0xC3,0x18,0x96,0x05,0x9A,0x07,0x12,0x80,0xE2,0xEB,0x27,0xB2,0x75,
0x09,0x83,0x2C,0x1A,0x1B,0x6E,0x5A,0xA0,0x52,0x3B,0xD6,0xB3,0x29,0xE3,0x2F,0x84,
0x53,0xD1,0x00,0xED,0x20,0xFC,0xB1,0x5B,0x6A,0xCB,0xBE,0x39,0x4A,0x4C,0x58,0xCF,
0xD0,0xEF,0xAA,0xFB,0x43,0x4D,0x33,0x85,0x45,0xF9,0x02,0x7F,0x50,0x3C,0x9F,0xA8,
0x51,0xA3,0x40,0x8F,0x92,0x9D,0x38,0xF5,0xBC,0xB6,0xDA,0x21,0x10,0xFF,0xF3,0xD2,
0xCD,0x0C,0x13,0xEC,0x5F,0x97,0x44,0x17,0xC4,0xA7,0x7E,0x3D,0x64,0x5D,0x19,0x73,
0x60,0x81,0x4F,0xDC,0x22,0x2A,0x90,0x88,0x46,0xEE,0xB8,0x14,0xDE,0x5E,0x0B,0xDB,
0xE0,0x32,0x3A,0x0A,0x49,0x06,0x24,0x5C,0xC2,0xD3,0xAC,0x62,0x91,0x95,0xE4,0x79,
0xE7,0xC8,0x37,0x6D,0x8D,0xD5,0x4E,0xA9,0x6C,0x56,0xF4,0xEA,0x65,0x7A,0xAE,0x08,
0xBA,0x78,0x25,0x2E,0x1C,0xA6,0xB4,0xC6,0xE8,0xDD,0x74,0x1F,0x4B,0xBD,0x8B,0x8A,
0x70,0x3E,0xB5,0x66,0x48,0x03,0xF6,0x0E,0x61,0x35,0x57,0xB9,0x86,0xC1,0x1D,0x9E,
0xE1,0xF8,0x98,0x11,0x69,0xD9,0x8E,0x94,0x9B,0x1E,0x87,0xE9,0xCE,0x55,0x28,0xDF,
0x8C,0xA1,0x89,0x0D,0xBF,0xE6,0x42,0x68,0x41,0x99,0x2D,0x0F,0xB0,0x54,0xBB,0x16
};
const BYTE decrypt_permutation_table[256] = {
0x52,0x09,0x6A,0xD5,0x30,0x36,0xA5,0x38,0xBF,0x40,0xA3,0x9E,0x81,0xF3,0xD7,0xFB,
0x7C,0xE3,0x39,0x82,0x9B,0x2F,0xFF,0x87,0x34,0x8E,0x43,0x44,0xC4,0xDE,0xE9,0xCB,
0x54,0x7B,0x94,0x32,0xA6,0xC2,0x23,0x3D,0xEE,0x4C,0x95,0x0B,0x42,0xFA,0xC3,0x4E,
0x08,0x2E,0xA1,0x66,0x28,0xD9,0x24,0xB2,0x76,0x5B,0xA2,0x49,0x6D,0x8B,0xD1,0x25,
0x72,0xF8,0xF6,0x64,0x86,0x68,0x98,0x16,0xD4,0xA4,0x5C,0xCC,0x5D,0x65,0xB6,0x92,
0x6C,0x70,0x48,0x50,0xFD,0xED,0xB9,0xDA,0x5E,0x15,0x46,0x57,0xA7,0x8D,0x9D,0x84,
0x90,0xD8,0xAB,0x00,0x8C,0xBC,0xD3,0x0A,0xF7,0xE4,0x58,0x05,0xB8,0xB3,0x45,0x06,
0xD0,0x2C,0x1E,0x8F,0xCA,0x3F,0x0F,0x02,0xC1,0xAF,0xBD,0x03,0x01,0x13,0x8A,0x6B,
0x3A,0x91,0x11,0x41,0x4F,0x67,0xDC,0xEA,0x97,0xF2,0xCF,0xCE,0xF0,0xB4,0xE6,0x73,
0x96,0xAC,0x74,0x22,0xE7,0xAD,0x35,0x85,0xE2,0xF9,0x37,0xE8,0x1C,0x75,0xDF,0x6E,
0x47,0xF1,0x1A,0x71,0x1D,0x29,0xC5,0x89,0x6F,0xB7,0x62,0x0E,0xAA,0x18,0xBE,0x1B,
0xFC,0x56,0x3E,0x4B,0xC6,0xD2,0x79,0x20,0x9A,0xDB,0xC0,0xFE,0x78,0xCD,0x5A,0xF4,
0x1F,0xDD,0xA8,0x33,0x88,0x07,0xC7,0x31,0xB1,0x12,0x10,0x59,0x27,0x80,0xEC,0x5F,
0x60,0x51,0x7F,0xA9,0x19,0xB5,0x4A,0x0D,0x2D,0xE5,0x7A,0x9F,0x93,0xC9,0x9C,0xEF,
0xA0,0xE0,0x3B,0x4D,0xAE,0x2A,0xF5,0xB0,0xC8,0xEB,0xBB,0x3C,0x83,0x53,0x99,0x61,
0x17,0x2B,0x04,0x7E,0xBA,0x77,0xD6,0x26,0xE1,0x69,0x14,0x63,0x55,0x21,0x0C,0x7D
};
memcpy(encrypt_permutation_table_, encrypt_permutation_table, 256);
memcpy(decrypt_permutation_table_, decrypt_permutation_table, 256);
KeyExpansion(KEY);
}
CAES::~CAES()
{
if (encrypt_permutation_table_)
{
delete[]encrypt_permutation_table_;
encrypt_permutation_table_ = 0;
}
if (decrypt_permutation_table_)
{
delete[]decrypt_permutation_table_;
decrypt_permutation_table_ = 0;
}
}
string CAES::AesEncrypt(string src,void*& dst,int &len)
{
CAES aes;
src = GBKToUTF8(src);//针对VS2010默认中文为GBK转码
len = aes.Encrypt(src.c_str(),src.length(),dst,0);
string encode = CBase64::base64_encode((const byte*)dst,len);
return encode;
}
string CAES::AesDecrypt(void* data, size_t len)
{
CAES aes;
aes.Decrypt(data,len);
string decode = UTF8ToGBK((char*)data);
if(data)delete[] data;
return decode;
}
size_t CAES::Encrypt(IN const void *const src_data, IN size_t src_len, OUT void* &dst_data, IN size_t dst_len, IN bool release_dst)
{
if (0 == src_data)
{
assert(src_data);
return 0;
}
if (0 == src_len)
{
return 0;
}
const size_t len = GetEncryptDataLen(src_len);
if (0 == dst_data)
{
dst_data = new BYTE[len];
}
else if (len > dst_len)
{
if (release_dst)
{
delete[]dst_data;
}
dst_data = new BYTE[len];
}
dst_len = len;
memset(dst_data, 0, dst_len);
memcpy(dst_data, src_data, src_len);
for (size_t i = 0; i < dst_len; i += 16)
{
Encrypt(reinterpret_cast<BYTE*>(dst_data) + i);
}
return dst_len;
}
void CAES::Decrypt(IN OUT void* data, IN size_t len)
{
if (0 == data || len % 16 != 0)
{
assert(data);
assert(len % 16);
return;
}
for (size_t i = 0; i < len; i += 16)
{
Decrypt(reinterpret_cast<BYTE*>(data) + i);
}
}
size_t CAES::GetEncryptDataLen(IN size_t src_len) const
{
if (src_len % 16 == 0)
{
return src_len;
}
else
{
return src_len + 16 - (src_len % 16);
}
}
void CAES::Encrypt(BYTE* data)
{
BYTE encrypt_data[4][4];
for (int row_index = 0; row_index < 4; row_index++)
{
for (int col_index = 0; col_index < 4; col_index++)
{
encrypt_data[row_index][col_index] = data[col_index * 4 + row_index];
}
}
AddRoundKey(encrypt_data, round_key_[0]);
for (int i = 1; i <= 10; i++)
{
EncryptSubBytes(encrypt_data);
EncryptShiftRows(encrypt_data);
if (i != 10)
{
EncryptMixColumns(encrypt_data);
}
AddRoundKey(encrypt_data, round_key_[i]);
}
for (int row_index = 0; row_index < 4; row_index++)
{
for (int col_index = 0; col_index < 4; col_index++)
{
data[col_index * 4 + row_index] = encrypt_data[row_index][col_index];
}
}
}
void CAES::Decrypt(BYTE* data)
{
BYTE decrypt_data[4][4];
for (int row_index = 0; row_index < 4; row_index++)
{
for (int col_index = 0; col_index < 4; col_index++) { decrypt_data[row_index][col_index] = data[col_index * 4 + row_index]; } } AddRoundKey(decrypt_data, round_key_[10]); for (int i = 9; i >= 0; i--)
{
DecryptShiftRows(decrypt_data);
DecryptSubBytes(decrypt_data);
AddRoundKey(decrypt_data, round_key_[i]);
if (i)
{
DecryptMixColumns(decrypt_data);
}
}
for (int row_index = 0; row_index < 4; row_index++)
{
for (int col_index = 0; col_index < 4; col_index++)
{
data[col_index * 4 + row_index] = decrypt_data[row_index][col_index];
}
}
}
void CAES::KeyExpansion(const BYTE* key)
{
for (int row_index = 0; row_index < 4; row_index++)
{
for (int col_index = 0; col_index < 4; col_index++)
{
round_key_[0][row_index][col_index] = key[row_index + col_index * 4];
}
}
// 轮常量
const BYTE round_const_value[] = { 0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x40, 0x80, 0x1B, 0x36 };
for (int i = 1; i <= 10; i++)
{
for (int j = 0; j < 4; j++)
{
BYTE tmp[4];
for (int row_index = 0; row_index < 4; row_index++)
{
tmp[row_index] = j ? round_key_[i][row_index][j - 1] : round_key_[i - 1][row_index][3];
}
if (j == 0)
{
BYTE table_index = tmp[0];
for (int row_index = 0; row_index < 3; row_index++)
{
tmp[row_index] = encrypt_permutation_table_[tmp[(row_index + 1) % 4]];
}
tmp[3] = encrypt_permutation_table_[table_index];
tmp[0] ^= round_const_value[i - 1];
}
for (int row_index = 0; row_index < 4; row_index++)
{
round_key_[i][row_index][j] = round_key_[i - 1][row_index][j] ^ tmp[row_index];
}
}
}
}
BYTE CAES::FFmul(BYTE a, BYTE b)
{
BYTE b_power[4] = {b, 0, 0, 0};
for (int i = 1; i < 4; i++)
{
b_power[i] = b_power[i - 1] << 1;
if (b_power[i - 1] & 0x80)
{
b_power[i] ^= 0x1B;
}
}
BYTE value = 0;
for (int i = 0; i < 4; i++) { if ((a >> i) & 0x01)
{
value ^= b_power[i];
}
}
return value;
}
void CAES::EncryptSubBytes(BYTE data[][4])
{
for (int row_index = 0; row_index < 4; row_index++)
{
for (int col_index = 0; col_index < 4; col_index++)
{
data[row_index][col_index] = encrypt_permutation_table_[data[row_index][col_index]];
}
}
}
void CAES::EncryptShiftRows(BYTE data[][4])
{
BYTE tmp[4];
for (int row_index = 1; row_index < 4; row_index++)
{
for (int col_index = 0; col_index < 4; col_index++)
{
tmp[col_index] = data[row_index][(col_index + row_index) % 4];
}
for (int col_index = 0; col_index < 4; col_index++)
{
data[row_index][col_index] = tmp[col_index];
}
}
}
void CAES::EncryptMixColumns(BYTE data[][4])
{
BYTE tmp[4];
for (int col_index = 0; col_index < 4; col_index++)
{
for (int row_index = 0; row_index < 4; row_index++)
{
tmp[row_index] = data[row_index][col_index];
}
for (int row_index = 0; row_index < 4; row_index++)
{
data[row_index][col_index] = FFmul(0x02, tmp[row_index])
^ FFmul(0x03, tmp[(row_index + 1) % 4])
^ FFmul(0x01, tmp[(row_index + 2) % 4])
^ FFmul(0x01, tmp[(row_index + 3) % 4]);
}
}
}
void CAES::AddRoundKey(BYTE data[][4], BYTE key[][4])
{
for (int col_index = 0; col_index < 4; col_index++)
{
for (int row_index = 0; row_index < 4; row_index++)
{
data[row_index][col_index] ^= key[row_index][col_index];
}
}
}
void CAES::DecryptSubBytes(BYTE data[][4])
{
for (int row_index = 0; row_index < 4; row_index++)
{
for (int col_index = 0; col_index < 4; col_index++)
{
data[row_index][col_index] = decrypt_permutation_table_[data[row_index][col_index]];
}
}
}
void CAES::DecryptShiftRows(BYTE data[][4])
{
BYTE tmp[4];
for (int row_index = 1; row_index < 4; row_index++)
{
for (int col_index = 0; col_index < 4; col_index++)
{
tmp[col_index] = data[row_index][(col_index - row_index + 4) % 4];
}
for (int col_index = 0; col_index < 4; col_index++)
{
data[row_index][col_index] = tmp[col_index];
}
}
}
void CAES::DecryptMixColumns(BYTE data[][4])
{
BYTE tmp[4];
for (int col_index = 0; col_index < 4; col_index++)
{
for (int row_index = 0; row_index < 4; row_index++)
{
tmp[row_index] = data[row_index][col_index];
}
for (int row_index = 0; row_index < 4; row_index++)
{
data[row_index][col_index] = FFmul(0x0e, tmp[row_index])
^ FFmul(0x0b, tmp[(row_index + 1) % 4])
^ FFmul(0x0d, tmp[(row_index + 2) % 4])
^ FFmul(0x09, tmp[(row_index + 3) % 4]);
}
}
}使用例子
void* dst = 0;
int len = 0;
string encode = CAES::AesEncrypt("aaa中文",dst,len);
string decode = CAES::AesDecrypt(dst,len);结果如下图：
和PHP端结果一样。
推荐阅读
最新回复 (0)
站点信息
- 文章2300
- 用户1336
- 访客10853847
每日一句
Challenges spark life; conquering them gives purpose.
挑战点亮生活，征服赋予意义。
挑战点亮生活，征服赋予意义。
